Features: • Integrated VREG• Complete Power Control Solution• +35dBm GSM Output Power at 3.5V• +33dBm DCS/PCS Output Power at 3.5V• 60% GSM and 55% DCS/PCS EFF• 7mmx7mmx0.9mm Package SizeApplication• 3V Quad-Band GSM Handsets• Commercial and Consumer...
RF3146: Features: • Integrated VREG• Complete Power Control Solution• +35dBm GSM Output Power at 3.5V• +33dBm DCS/PCS Output Power at 3.5V• 60% GSM and 55% DCS/PCS EFF• 7...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Parameter |
Rating |
Unit |
Supply Voltage |
-0.5 to +6.0 |
VDC |
Control Voltage(VRAMP) |
-0.3 to +1.8 |
V |
Input RF Power |
+10 |
dBm |
Max Duty Cycle |
50 |
% |
Output Load VSWR |
10:1 |
|
Operating Ambient Temperature |
-20 to +85 |
|
Storage Temperature |
-55 to +150 |

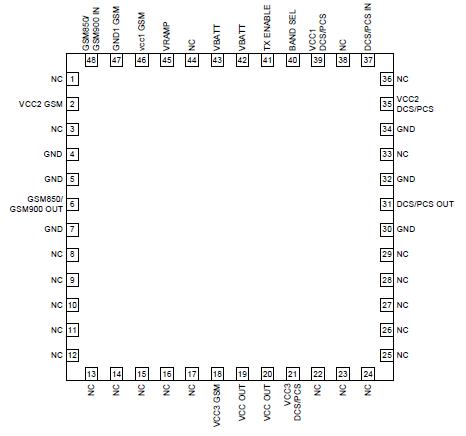

The RF3146 is a high-power, high-efficiency power amplifier module with integrated power control. The device RF3146 is a self-contained 7mmx7mmx0.9mm lead frame module (LFM) with 50 input and output terminals. The RF3146 power control function is also incorporated, eliminating the need for directional couplers, detector diodes, power control ASICs and other power control circuitry; this allows the module to be driven directly from the DAC output. The RF3146 device is designed for use as the final RF amplifier in GSM850, EGSM900, DCS and PCS handheld digital cellular equipment and other applications in the 824MHz to 849MHz, 880MHz to 915MHz, 1710MHz to 1785MHz and 1850MHz to 1910MHz bands. On-board power control provides over 50dB of control range with an analog voltage input; and, power down with a logic "low" for standby operation.
