Features:

• 3-channel R/G/B video amplifier, 150MHz @f-3dB
• I2C bus control items - Contrast control: -38dB - Sub contrast control for each channel: -12dB
- Brightness control - OSD contrast control: -38dB - Cut-off brightness control (AC coupling) - Cut-off control for each channel (AC coupling) - Switch registers for SBLK and video half tone and CLP/BLK polarity selection and INT/EXT CLP selection
• Built in ABL (automatic beam limitation)
• Built in video input clamp, BRT clamp
• Built in video half tone (3mode) function on OSD pictures
• Capable of 8.0Vp-p output swing
• Improvement of rise & fall time (2.2ns)
• Cut-off brightness control
• Built in blank gate with spot killer
• Clamp pulse generator
• OSD intensity
• BLK, CLP polarity selection
• Clamp gate with anti OSD sagging

Pinout

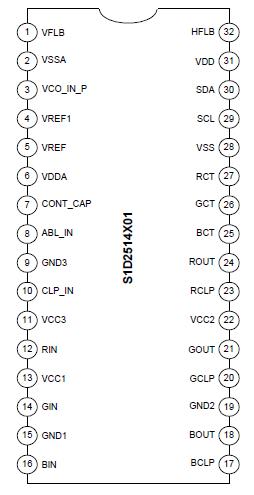

Connection Diagram

Specifications

No	Item	Symbol	Value			Unit
No	Item	Symbol	Min	Typ	Max	Unit
1	Maximum supply voltage	V_CC	-	-	13.2	V
1	Maximum supply voltage	V_DD	-	-	6.5	V
2	Operating Temperature(see 2)	T_OPR	-20	-	75
3	Storage temperature	T_STG	-65		150
4	Operating supply voltage	V_CCOP	11.4	12.0	12.6	V(SEE 3)
4	Operating supply voltage	V_DDOP	4.75	5.00	5.25	V(SEE 3)
5	Power dissipation	P_D	-	-		W
