Product Details

Description



Features:

CPU
• SAM87RI CPU core

Memory
• 4K-byte internal program memory (ROM)
• 208-byte RAM
• 16 bytes of working register

Instruction Set
• 41 instructions
• IDLE and STOP instructions added for powerdown modes

Instruction Execution Time
• 1.0 ms at 6 MHz fOSC

Interrupts
• 12 interrupt sources with one vector
• One level, one vector interrupt structure

Oscillation Circuit Options
• 6 MHz crystal/ceramic oscillator
• External clock source

General I/O
• 11 bit-programmable I/O pins

Timer/Counter
• One 8-bit basic timer for watchdog function and programmable oscillation stabilization interval generation  function
• One 8-bit timer/counter with Compare/Overflow counter

USB Serial Bus
• Compatible to USB low speed (1.5 Mbps) device 1.0 specification.
• Serial bus interface engine (SIE)
  - Packet decoding/generation
  - CRC generation and checking
  - NRZI encoding/decoding and bit-stuffing
• Two 8-byte receive/transmit USB buffer

Operating Temperature Range
• 40to + 85

Operating Voltage Range
• 4.0 V to 5.25 V

Package Types
• 20-pin DIP
• 24-pin SOP

Comparator
• 4-channel mode, 4-bit resolution
• 3-channel mode, external reference low EMI design


Pinout

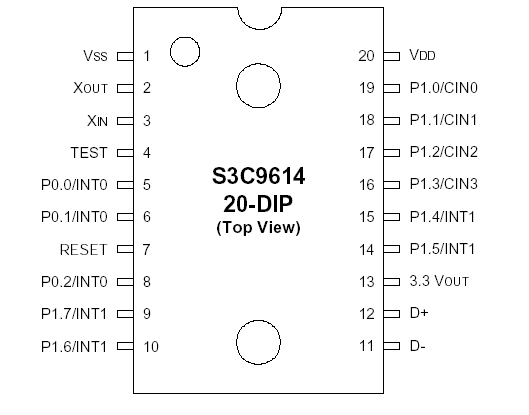

Connection Diagram


Specifications

Parameter
Symbol
Conditions
Rating
Unit
Supply voltage
VDD
-
0.3 to +6.5
V
Input voltage
VIN
All in ports
0.3 to VDD + 0.3
V
Output voltage
VO
All output ports
-0.3 to VDD + 0.3
V
Output current high
IOH
One I/O pin active
18
mA
All I/O pins active
60
Output current low
IOL
One I/O pin active
+30
mA
Total pin current for ports 0, 1
+150
Operating temperature
TA
-
40to + 85
Storage temperature
TSTG
-
65 to + 150



Description

The S3C9614/P9614 microcontroller with USB function can be used in a wide range of general purpose applications. It is especially suitable for mouse or joystick controller and is available in 20-pin DIP and 24-pin SOP package.

The S3C9614/P9614 single-chip 8-bit microcontroller is fabricated using an advanced CMOS process. It is built around the powerful SAM87RI CPU core.

Stop and Idle power-down modes were implemented to reduce power consumption. To increase on-chip register space, the size of the internal register file was logically expanded. The S3C9614/P9614 has 4K-bytes of program memory on-chip and 208 bytes of RAM including 16 bytes of working register.

S3C9614 Using the SAM87Ri design approach, the following peripherals were integrated with the SAM87Ri core:

  - Two configurable I/O ports (11 pins)
  - 7 bit-programmable pins for external interrupts
  - 8-bit timer/counter with two operating modes
