S3P72P9

Features: Memory• 1,056*4-bit RAM (excluding LCD display RAM)• 32,768*8-bit ROM39 I/O Pins• I/O: 35 pins• Input only: 4 pinsLCD Controller/Driver• 56 segments and 16 common terminals• 8, 12 and 16 common selectable• Internal resistor circuit for LCD bias&#...

product image

S3P72P9 Picture
See larger image
SeekIC No. : 004482262 Detail

S3P72P9: Features: Memory• 1,056*4-bit RAM (excluding LCD display RAM)• 32,768*8-bit ROM39 I/O Pins• I/O: 35 pins• Input only: 4 pinsLCD Controller/Driver• 56 segments and 16 co...

S3P72P9 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S3P72P9
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Memory
• 1,056*4-bit RAM (excluding LCD display RAM)
• 32,768*8-bit ROM

39 I/O Pins
• I/O: 35 pins
• Input only: 4 pins

LCD Controller/Driver
• 56 segments and 16 common terminals
• 8, 12 and 16 common selectable
• Internal resistor circuit for LCD bias
• All dot can be switched on/off
• LCD contrast control by software

8-bit Basic Timer
• 4 interval timer functions
• Watch-dog timer

8-bit Timer/Counter
• Programmable 8-bit timer
• External event counter
• Arbitrary clock frequency output
• External clock signal divider
• Serial I/O interface clock generator

16-Bit Timer/Counter
• Programmable 16-bit timer
• External event counter
• Arbitrary clock frequency output
• External clock signal divider

8-bit Serial I/O Interface
• 8-bit transmit/receive mode
• 8-bit receive mode
• LSB-first or MSB-first transmission selectable
• Internal or external clock source

Memory-Mapped I/O Structure
• Data memory bank 15

Watch Timer
• Time interval generation: 0.5 s, 3.9 ms at 32768 Hz
• 4 frequency outputs to BUZ pin
• Clock source generation for LCD

Interrupts
• Four internal vectored interrupts
• Four external vectored interrupts
• Two quasi-interrupts

Bit Sequential Carrier
• Supports 16-bit serial data transfer in arbitrary format

Power-Down Modes
• Idle mode (only CPU clock stops)
• Stop mode (main system oscillation stops)
• Subsystem clock stop mode

Oscillation Sources
• Crystal, ceramic, or RC for main system clock
• Crystal oscillator for subsystem clock
• Main system clock frequency: 0.4 6 MHz
• Subsystem clock frequency: 32.768 kHz
• CPU clock divider circuit (by 4, 8, or 64)

Instruction Execution Times
• 0.67, 1.33, 10.7 µs at 6 MHz
• 0.95, 1.91, 15.3 µs at 4.19 MHz
• 122 µs at 32.768 kHz

Operating Temperature
• 40 to 85

Operating Voltage Range
• 1.8 V to 5.5 V

Package Type
• 100-pin QFP


Pinout

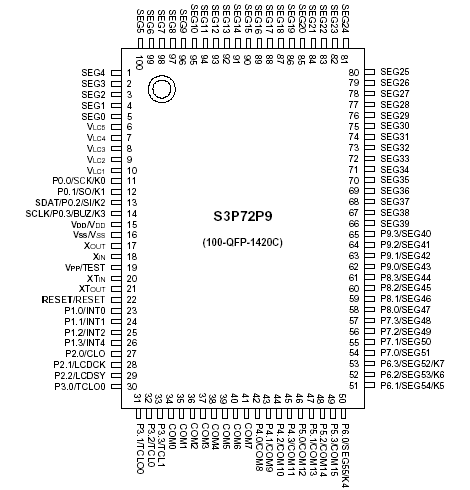

Connection Diagram




Specifications

Parameter
Symbol
Conditions
Rating
Unit
Supply voltage
VDD
-
0.3 to 6.5
V
Input voltage
VI
Ports 09
0.3 to VDD + 0.3
V
Output voltage
VO
-
-0.3 to VDD + 0.3
V
Output current high
IOH
One I/O pin active
15
mA
All I/O pins active
35
Output current low
IOL
 One I/O port active
+30(Peak value)
mA
+ 15(note)
Total for ports 0, 29
+ 100(Peak value)
+ 60(note)
Operating temperature
TA
-
40to + 85
Storage temperature
TSTG
-
65 to + 150
NOTE: The values for Output Current Low ( IOL ) are calculated as Peak Value * Duty .


Description

The S3P72P9 single-chip CMOS microcontroller has been designed for high performance using Samsung's newest 4-bit CPU core, SAM47 (Samsung Arrangeable Microcontrollers).

With an up-to-896-dot LCD direct drive capability, flexible 8-bit and 16-bit timer/counters, and serial I/O interface, the S3P72P9 offers an excellent design solution for a wide variety of applications which require LCD functions.

Up to 39 pins of the 100-pin QFP package can be dedicated to I/O. Eight vectored interrupts provide fast response to internal and external events. In addition, the S3P72P9's advanced CMOS technology provides for low power consumption and a wide operating voltage range.

The S3P72P9 is made by shrinking the KS57C21516. The S3P72P9 is comparable to KS57C21516, both in function and in pin configuration except that S3C72P9 have a 32,768 ×8-bit ROM, 1056×4-bit RAM, 12 common selectable and LCD contrast control function.
