S3P7544

Features: Memory` 512* 4-bit RAM` 4096* 8-bit ROMI/O Pins` 17 pins I/O` N-channel open-drain I/O: 8 pins8-Bit Basic Timer` Programmable interval timer` Watchdog timerInterval 8-Bit Timer/Counter` Programmable interval timer` External event counter function` Timer/counter clock output to TCLO0 pinB...

product image

S3P7544 Picture
See larger image
SeekIC No. : 004482272 Detail

S3P7544: Features: Memory` 512* 4-bit RAM` 4096* 8-bit ROMI/O Pins` 17 pins I/O` N-channel open-drain I/O: 8 pins8-Bit Basic Timer` Programmable interval timer` Watchdog timerInterval 8-Bit Timer/Counter` Pr...

S3P7544 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S3P7544
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Memory
` 512* 4-bit RAM
` 4096* 8-bit ROM

I/O Pins
`  17 pins I/O
`  N-channel open-drain I/O: 8 pins

8-Bit Basic Timer
` Programmable interval timer
` Watchdog timer

Interval 8-Bit Timer/Counter
` Programmable interval timer
` External event counter function
` Timer/counter clock output to TCLO0 pin

Buzzer Output
` Four frequency output to BUZ pin

D/A Converter
` 8-bit D/A converter

Interrupts
` Two external interrupt vectors
` Two internal interrupt vectors
` One quasi-interrupt

Memory-Mapped I/O Structure
` Data memory bank 15

Bit Sequential Carrier
` Supports 16-bit serial data transfer in arbitrary format

Power-Down Modes
` Idle mode (only CPU clock stops)
` Stop mode (system clock stops)

Oscillation Sources
` Crystal, or ceramic for system clock
` Crystal, ceramic: 0.46.0 MHz
` CPU clock divider circuit (by 4, 8, or 64)

Instruction Execution Times
` 0.95, 1.91, and 15.3 ms at 4.19 MHz
` 0.67, 1.33, 10.7 ms at 6.0 MHz

Operating Temperature
` 40 to 85

Operating Voltage Range
` 1.8 V to 5.5 V (at 3 MHz)
` 2.7 V to 5.5 V (at 6 MHz)

Package Types
` 24-pin SOP-375
` 24-pin SDIP-300

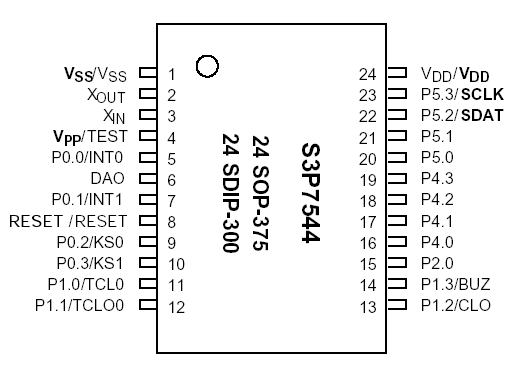

Pinout

Connection Diagram




Specifications

Parameter
Symbol
Conditions
Rating
Unit
Supply voltage
VDD
-
0.3 to 6.5
V
Input voltage
VI
All I/O ports
0.3 to VDD + 0.3
V
Output voltage
VO
-
-0.3 to VDD + 0.3
V
Output current high
IOH
One I/O port active
5
mA
One I/O ports active
35
Output current low
IOL
 One I/O port active
+30(Peak)
mA
+ 15(note)
All I/O ports active
+ 100 (Peak)
+ 60(note)
Operating temperature
TA
-
40to + 85
Storage temperature
TSTG
-
65 to + 150
NOTE: The values for Output Current Low ( IOL ) are calculated as Peak Value * Duty .


Description

The S3P7544 single-chip CMOS microcontroller is designed for high-performance using Samsung's newest 4-bit CPU core, SAM47 (Samsung Arrangeable Microcontrollers).

With a versatile 8-bit timer/counter and a D/A converter, the S3P7544 offers an excellent design solution for a wide variety of telecommunication applications.

Up to 17 pins of the 24-pin SDIP package can be dedicated to I/O. Four vectored interrupts provide fast response to internal and external events. In addition, the S3P7544's advanced CMOS technology has realized substantially lower power consumption with a wide operating voltage range - all at a substantially lower cost.
