S3P9428

Features: CPU• SAM87RI CPU coreMemory• 208-byte general purpose register area (RAM)• 4K/8K byte internal program memory (ROM)Instruction Set• 41 instructions• The SAM87RI core provides all the SAM87 core instruction except the word-oriented instruction, multiplicatio...

product image

S3P9428 Picture
See larger image
SeekIC No. : 004482306 Detail

S3P9428: Features: CPU• SAM87RI CPU coreMemory• 208-byte general purpose register area (RAM)• 4K/8K byte internal program memory (ROM)Instruction Set• 41 instructions• The SAM87...

S3P9428 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S3P9428
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

CPU
• SAM87RI CPU core

Memory
• 208-byte general purpose register area (RAM)
• 4K/8K byte internal program memory (ROM)

Instruction Set
• 41 instructions
• The SAM87RI core provides all the SAM87 core instruction except the word-oriented instruction,
   multiplication, division, and some one-byte instruction

Instruction Execution Time
• 375 ns at 16 MHz fosc(minimum)

Interrupts
• 9 interrupt sources and 1 vector
• One interrupt level

General I/O
• Four I/O ports (total 24pins)
• Bit programmable ports

Serial I/O
• One synchronous serial I/O module
• Selectable transmit and receive rates

Multi-Master IIC-Bus
• Serial peripheral interface

Zero-Crossing Detection Circuit
• Zero crossing detection circuit that generates a digital signal in synchronism with an AC signal input

Built-in reset Circuit (LVD)
• Low voltage detector for safe reset

Timer/Counters
• One 8-bit basic timer for watchdog function
• One 8-bit timer/counter with three operating mode
• One 8-bit timer/counter

PWM module
• 12-bit PWM 2-ch (Max: 250KHz)
• 6-bit base + 6-bit extension frame
• One 8-bit timer/counter

A/D Converter
• 12 analog input pins
• 10-bit conversion resolution

Buzzer Frequency Range
• 200 Hz to 20 kHz signal can be generated

Oscillator Freqeuncy
• 1-MHz to 16-MHz external crystal oscillator

Maximum 16-MHz CPU clock
• RC: 4MHz(typ)

Operating Temperature Range
• 40  to + 85

Operating Voltage Range
• 3.0 V to 5.5 V (LVD)
• 1.8 V to 5.5 V (No LVD)

OTP Interface Protocol Spec
• Serial OTP

Package Types
• S3C9424/C9428
  32-pin SOP-450 (3V LVD)
  30-pin SDIP-400 (3V LVD)
  28-pin SOP-375


Pinout

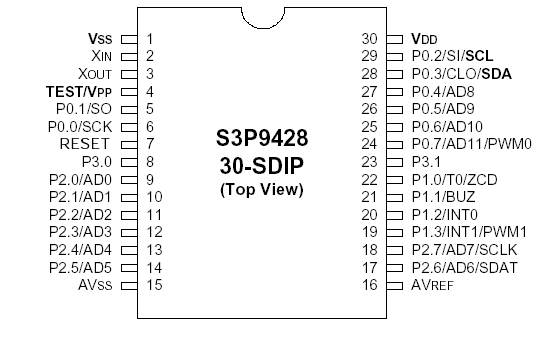

Connection Diagram




Specifications

Parameter
Symbol
Conditions
Rating
Unit
Supply voltage
VDD
-
0.3 to +6.5
V
Input voltage
VI
All input ports
0.3 to VDD + 0.3
V
Output voltage
VO
All output ports
-0.3 to VDD + 0.3
V
Output current high
IOH
One I/O pin active
-25
mA
All I/O pins active
80
Output current low
IOL
 One I/O pin active
+30
mA
Total pin current for ports 1, 2, 3
+100
Total pin current for ports 0
+200
Operating temperature
TA
-
40to + 85
Storage temperature
TSTG
-
65 to + 150




Description

The S3C9424/C9428/S3P9428 single-chip 8-bit microcontroller is fabricated using an advanced CMOS process. It is built around the powerful SAM87Ri CPU core. The S3C9424/C9428/S3P9428 is a versatile microcontroller, with its A/D converter, SIO, IIC and a zero-crossing detection capability it can be used in a wide range of general purpose applications.

Stop and Idle power-down modes were implemented to reduce power consumption. To increase on-chip register space, the size of the internal register file was logically expanded. The S3C9424/C9428/S3P9428 have 4K-byte or 8K-byte of program memory on-chip (ROM) and 208-bytes of general purpose register area RAM.

S3P9428 , Using the SAM87Ri design approach, the following peripherals were integrated with the SAM87Ri core:

• Four configurable I/O ports (24 pins)
• Nine interrupt sources with one vector and one interrupt level
• Two 8-bit timer/counter with various operating modes
• Analog to digital converter with 12 input channels and 10-bit resolution
• One synchronous SIO module
• One IIC module
• Two 12-bit PWM output

The S3C9424/C9428/S3P9428 microcontroller is ideal for use in a wide range of electronic applications requiring simple timer/counter, PWM, ADC, SIO, IIC, ZCD and capture functions. S3C9424/C9428/S3P9428 is available in a 28/32-pin SOP and a 30-pin SDIP package.
