Features:

· Enough font to support multiple language :
· Wide Operating (Horizontal) Frequency Range : 30kHz 120kHz
· 640, 800, 1024 and 1280 Dots/ Line
· Pixel Frequency provided by On-Chip PLL : 19.2MHz ¾ 153.6MHz
· General Font Matrix : 12 ´ 18
· Fully Programmable Display Area : 15 Rows ´ 30 Columns
· Popular MCU Interface : I2C Protocol
· Built in 1K-byte SRAM
· Selectable Character Color (Up to 16 Color) : Font basis
· Selectable Raster Color (Up to 16 Color) : Font basis
· Programmable and Auto-adjustable Vertical Height of Character : Range 18 ¾ 63
· Character Blinking and Shadowing : Font basis
· Programmable Symmetrical Row to Row Spacing : Range 0 ¾ 31
· Horizontal Starting Position : 256 different positions (6 dots for each step)
· Vertical Starting Position : 256 different positions (4 scan line for each step)
· Scrolling : Effect where 1 character line is scrolled up or down
· 4 Programmable Window Function and Window Priority Control
· Selectable Window Shadow Width : H/ V 2, 4, 6 and 8 Dots
· Supports Background Video Transparency : Font basis or Window basis
· Full White Pattern Generation for Manufacturing Mode
· Auto Character Height Control
· Full-Screen Display RAM Erasing
· OSD Vertical Bouncing Auto-Detecting & Correction


Pinout

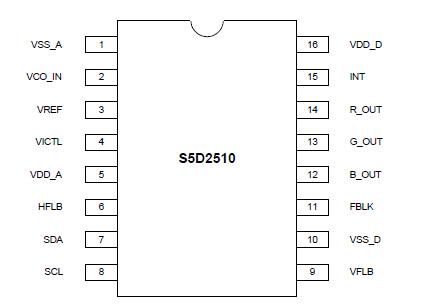

Connection Diagram


Specifications

Parameters
Symbol
Value
Units
Supply Voltage
VDD
0 - 6.5
V
Input Voltage
VI
0- 5.25
V
Power Dissipation
Pd
1200
mW
Operating Temperature Range
Topr
-20 - 70
Storage Temperature Range
Tstg
-40 - 125

* PKG Thermal Resistance : 64.2°C / W


Description

S5D2510 is a stand-alone OSD Processor, which is used to display monitor adjustment or status information as a certain character or symbol on screen. Its basic operation includes making the R/ G/ B signal for the character or ymbol by controlling the internal memory, synchronizing it with the horizontal flyback signal, and mixing it with the main video signal in the video AMP IC. The font data for making the character or symbol is stored in the internal ROM. It is accessed and controlled by the control data, transmitted from the micro controller through the I2C bus. The S5D2510 contains internal PLL circuitry, so all timing control signals, including the system clock, are synchronized with the horizontal flyback signal.
