S5D2650

Features: • Accepts NTSC-M/N/4.43, PAL-M/N/B/G/H/I/D/K/L and SECAM formats with auto detection• 6 analog inputs: 2 S-video, 4 composite, or 2 3-wire YPbPr component video• YPbPr Progressive input support(720x480p)• 3-line luma and chroma comb filters including adaptive luma...

product image

S5D2650 Picture
See larger image
SeekIC No. : 004482653 Detail

S5D2650: Features: • Accepts NTSC-M/N/4.43, PAL-M/N/B/G/H/I/D/K/L and SECAM formats with auto detection• 6 analog inputs: 2 S-video, 4 composite, or 2 3-wire YPbPr component video• YPbPr Pr...

S5D2650 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S5D2650
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Accepts NTSC-M/N/4.43, PAL-M/N/B/G/H/I/D/K/L and SECAM formats with auto detection
• 6 analog inputs: 2 S-video, 4 composite, or 2 3-wire YPbPr component video
• YPbPr Progressive input support(720x480p)
• 3-line luma and chroma comb filters including adaptive luma comb for NTSC
• Programmable luma bandwidth, contrast, brightness, and edge enhancement
• Programmable chroma bandwidth, hue, and saturation
• High quality horizontal and vertical down scaler
• Intercast, Teletext and Closed Caption decoding with built-in bit slicer
• Direct output of digitized CVBS during VBI for Intercast application
• Analog square pixel or CCIR 601 sample rates
• Output in 4:4:4, 4:2:2, or 4:1:1 YCbCr component, or 24-bit or 16-bit RGB formats with dithering
• YCbCr 4:2:2 output can be 8 or 16 bits wide with embedded timing reference code support for 8-bit mode
• Simultaneous scaled and non-scaled digital output ports outputs for 8-bit mode.
• Direct access to scaler via bi-directional digital port.
• Programmable Gamma correction table
• Programmable timing signals
• Industry standard IIC interface


Application

• Multimedia
• Digital Video
• Video Capture/Editing
• LCD-TV
• Surveillance system


Pinout

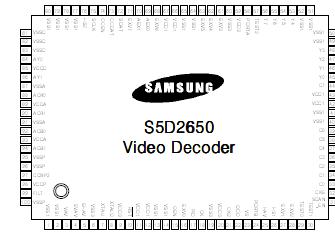

Connection Diagram


Specifications

Characteristics
Symbol
Value
Units
3.3-V supply voltage (measured to VSS)
VDD3
-0.5 to + 3.8
V
1.8-V supply voltage (measured to VSS)
VDD1
-0.5 to + 2.7
V
Voltage on any digital pin
VPIN
-0.5 to
(VDD3+0.5)
V
Ambient operating temperature (case)
TA
-40 to + 100
Storage temperature
TS
-65 to + 150
Junction temperature
TJ
150
Vapor phase soldering (1 min.)
Tvsol
220

Notes: 1.Absolute maximum ratings are limiting values applied individually while all other parameters are within specified operating conditions.
2.Functional operation under any of these conditions is not implied.
3.Applied voltage must be current limited to a specified range.


Description

The S5D2650 converts analog NTSC, PAL or SECAM video in composite, S-video, or component format to digitized component video. Output data can be selected for CCIR 601 or square pixel sample rates in either YCbCr or RGB formats. The digital video can be scaled down in both the horizontal and vertical directions. The S5D2650 also decodes Intercast, Teletext, Closed Caption, and SMPTE data with a built-in bit data slicer. Digitized CVBS data can be output directly during VBI for external processing.
