Features:

• Dynamic, Static & Feedback OVP
• Extremely Low Start up Current (30uA Typ.)
• Very Low Operating Current (4mA Typ.)
• Internal Self Start Timer
• Current Sense with Internal RC Filter
• Trimmed ±1.5% internal Reference
• Under Voltage Lock Out with Hysteresis
• Pin Compatible to World Standard
• High Current Totem Pole Gate Drive




Application

• Electronic Ballast
• SMPS




Pinout

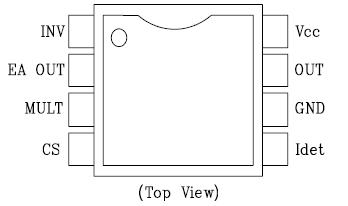

Connection Diagram




Specifications

CHARACTERISTICS
SYMBOL
VALUE
UNITS
Supply Voltage
VCC
18
V
Supply voltage Regulator Maximum Current
ICC( max)
35
mA
Peak Drive Output Current
Ioh, lol
±500
mA
Driver Output Clamping Diodes Vo>Vcc or Vo<-0.3V
Iclamp
±10
mA
Detect Clamping Diodes
ldet
±10
mA
Error Amp, Compensation and Multiplier Input Voltage
Vin
-0.3 to 6
V
Power Dissipation @ Pamb=50
Pd
0.8
W





Description

This S6500P is power factor correction controller using a discontinues conduction mode of boost converter. Especially, it is optimized for electronic ballasts which prevent abnormal functions in load runaway and feedback loop fault conditions and low power and high density power supplies which require minimum board size. The external component R/C filter is not necessary because the R/C filter is included in current sense block. This is the improved version with a pin out equivalent to world standard.



This S6500P is power factor correction controller using a discontinues conduction mode of boost converter. Especially, it is optimized for electronic ballasts which prevent abnormal functions in load runaway and feedback loop fault conditions and low power and high density power supplies which require minimum board size.
