SA555C

Features: • Turn-off time less than 2s• Max. operating frequency greater than 500kHz• Timing from microseconds to hours• Operates in both astable and monostable modes• High output current• Adjustable duty cycle• TTL compatible• Temperature stability ...

product image

SA555C Picture
See larger image
SeekIC No. : 004483700 Detail

SA555C: Features: • Turn-off time less than 2s• Max. operating frequency greater than 500kHz• Timing from microseconds to hours• Operates in both astable and monostable modes• ...

SA555C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SA555C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Turn-off time less than 2s
• Max. operating frequency greater than 500kHz
• Timing from microseconds to hours
• Operates in both astable and monostable modes
• High output current
• Adjustable duty cycle
• TTL compatible
• Temperature stability of 0.005% per °C


Application

• Precision timing
• Pulse generation
• Sequential timing
• Time delay generation
• Pulse width modulation

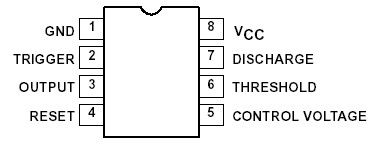

Pinout

Connection Diagram


Specifications

Symbol Parameter Rating Unit
VCC Supply voltage
SE555
NE555, SE555C, SA555		 +18
+16		 V
V
PD Maximum allowable power dissipation1 600 mW
TA


 Operating ambient temperature range
NE555
SA555
SE555, SE555C
0 to +70
-40 to +85
-55 to +125
 °C
°C
°C
TSTG
TSOLD		 Storage temperature range
Lead soldering temperature (10sec max)		 -65 to +150
+300		 °C
°C
NOTES:
1. The junction temperature must be kept below 125°C for the D package and below 150°C for the FE, N and F packages. At ambient temperatures above 25°C, where this limit would be derated by the following factors:
D package 160°C/W
FE package 150°C/W
N package 100°C/W
F package 105°C/W


Description

The 555 monolithic timing circuit is a highly stable controller capable of producing accurate time delays, or oscillation. In the time delay mode of operation, the time is precisely controlled by one external resistor and capacitor. For a stable operation as an oscillator, the free running frequency and the duty cycle are both accurately controlled with two external resistors and one capacitor. The circuit of 555 may be triggered and reset on falling waveforms, and the output structure can source or sink up to 200mA.
