Product Details

Description



Features:

· Performs bidirectional power measurement and directly drives a 5 digit (7 segment) LED display
· Accuracy better than 1% (± 1 count)
· Protected against ESD
· Total power consumption rating below 50mW
· Adaptable to different types of current sensors
· Operates over a wide temperature range
· Precision voltage reference on-chip


Pinout

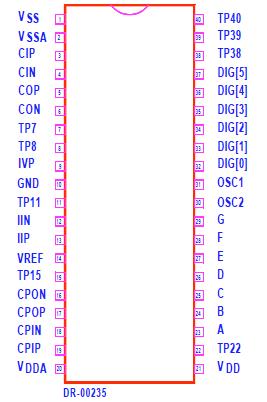

Connection Diagram


Specifications

Parameter Symbol Min Max Unit
Supply Voltage VDD -VSS -0.3 6.0 V
Current on any pin IPIN -150 +150 mA
Storage Temperature TSTG -40 +125 °C
Operating Temperature TO -25 +85 °C


* Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only. Functional operation of the device at these or any other condition above those indicated in the operational sections of this specification, is not implied. Exposure to Absolute Maximum Ratings for extended periods may affect device reliability.




Description

The SAMES SA9106A Single Phase Watt measurement integrated circuit has an integrated Light Emitting Diode (LED) display driver for a 5 digit (7 segment) display. The SA9106A performs the power calculations for active power.

The method of calculation SA9106A takes the power factor into account.

The measured power SA9106A is displayed in Watts and is updated approximately every 2 seconds, given an average power reading for this period.

This innovative universal Watt measurement integrated circuit, SA9106A is ideally suited for the display of the measured power in industrial and domestic power measurement and multi plug sockets.

The SA9106A integrated circuit is available in 40 pin dual-in-line plastic (DIP-40) as well as 44 pin plastic leaded chip carrier (PLCC-44) package types.
