Features:

· Performs bidirectional energy metering and directly drives a LCD with 7 digits plus announciators
· 4 externally selectable on-chip tariff registers
· An additional total energy register
· Meets the IEC 521/1036 Specification requirements for Class 1 AC Watt hour meters
· Optical interface for electronic reading according to IEC1107 Mode D
· Pulse output for calibration
· Total power consumption rating below 40mW
· Adaptable to different types of current sensors
· Operates over a wide temperature range
· Precision voltage reference on-chip
· Protected against ESD


Pinout

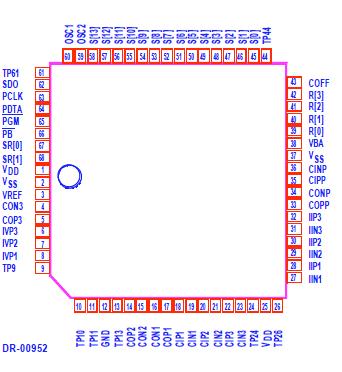

Connection Diagram


Specifications

Parameter Symbol Min Max Unit
Supply Voltage VDD -VSS -0.3 6.0 V
Current on any pin IPIN -150 +150 mA
Storage Temperature TSTG -40 +125 °C
Operating Temperature TO -10 +70 °C


* Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only. Functional operation of the device at these or any other condition above those indicated in the operational sections of this specification, is not implied. Exposure to Absolute Maximum Ratings for extended periods may affect device reliability.




Description

The SAMES SA9110A Three Phase bidirectional energy metering integrated circuit has an integrated Liquid Crystal Display (LCD) driver for a 7 digit (7 segment) display as well as 4 multiple tariff registers. The SA9110A performs the active power calculation.

The method of calculation SA9110A takes the power factor into account.

The measured energy is displayed in kilo Watt hours (kWh). The SA9110A is capable of driving a display having a resolution of 1/10 kWh.

This innovative universal energy metering integrated circuit is ideally suited for energy measurement in three phase systems. The SA9110A integrated circuit is available in a 68 pin plastic leaded chip carrier (PLCC
