SA9504

Features: • LNAs for both Cellular (AMPS) and PCS (CDMA) bands• High gain, low noise figure, high linearity performance• Cascode output structure requiring no external matching• Low power consumption, typical 4.9 mA• Low voltage operation down to 2.7 volts• Sepa...

product image

SA9504 Picture
See larger image
SeekIC No. : 004483849 Detail

SA9504: Features: • LNAs for both Cellular (AMPS) and PCS (CDMA) bands• High gain, low noise figure, high linearity performance• Cascode output structure requiring no external matchingR...

SA9504 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SA9504
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• LNAs for both Cellular (AMPS) and PCS (CDMA) bands
• High gain, low noise figure, high linearity performance
• Cascode output structure requiring no external matching
• Low power consumption, typical 4.9 mA
• Low voltage operation down to 2.7 volts
• Separate, selectable IF outputs to suit FM and CDMA bandwidths
• Buffered Cellular and PCS LO inputs
• Integrated frequency doubler for PCS mixer LO
• Differential (Tx) LO output buffer (can be switched on or off)
• Low voltage operation down to 2.7 volts
• Mixers current consumption with (Tx) LO buffer on:
  Cellular FM: 17.4 mA
  PCS: 27.6 mA
• Low standby current in sleep mode: <50 A
• Small LQFP32 package


Application

• 800 MHz analog FM and receivers
• 1.9 GHz PCS (CDMA) digital receivers
• Supports dual-band operation
• Digital mobile communications equipment
• Portable, low power radio equipment

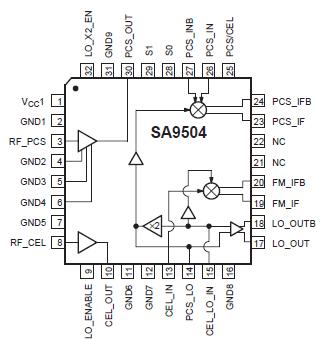

Pinout

Connection Diagram


Specifications

PARAMETER RATINGS UNIT
Supply voltage (VCC) 0.3 to +3.6 V
Logic input voltage 0.3 to VCC+0.3 V
Maximum power input +20 dBm
Power dissipation (Tamb = 25°C) 800 mW
Storage temperature range 65 to +150 °C


NOTES:
1. Stresses beyond those listed may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated under "Recommended Operating Conditions" is not implied. Exposure to absolute-maximum-rated-conditions for extended periods may affect device reliability.




Description

The SA9504 is an integrated receiver front-end for 900 MHz Cellular (AMPS) and 1.9 GHz PCS (CDMA) phones. This dual-band receiver circuit has low noise amplifiers and downconverters for both bands, and SA9504 provides an elegant solution for RF-to-IF conversion.

The two cascode LNAs SA9504 have been designed to provide high gain with very low noise figures and high linearity. The downconverter portion is based on the Philips SA9502. There are two individual mixer blocks, each optimized for low noise figure and high linearity. The whole circuit of SA9504 is designed for low power consumption, high performance, and is compatible with the requirements for Cellular (AMPS) and PCS (CDMA) handsets.

The SA9504 has been designed in our advanced QUBiC3 BiCMOS process with 30 GHz fT and 60 GHz fMAX.
