Product Details

Description



Features:

· Pin and functionally compatible with the SA9102E with reduced external components
· Performs unidirectional power and energy measurement
· Meets the IEC 521/1036 Specification requirements for Class 1 AC Watt hour meters
· Protected against ESD
· Total power consumption rating below 25mW
· Adaptable to different types of current sensors
· Operates over a wide temperature range
· Precision voltage reference on-chip
· Different pulse rate options available


Pinout

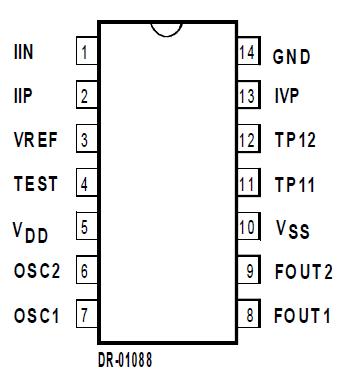

Connection Diagram


Specifications

Parameter Symbol Min Max Unit
Supply Voltage VDD -VSS -0.3 6.0 V
Current on any pin IPIN -150 +150 mA
Storage Temperature TSTG -40 +125 °C
Operating Temperature TO -40 +85 °C


* Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only. Functional operation of the device at these or any other condition above those indicated in the operational sections of this specification, is not implied. Exposure to Absolute Maximum Ratings for extended periods may affect device reliability.




Description

The SAMES SA9602E is an enhancement of the SA9102E, as no external capacitors are required for the A/D converters. The SAMES SA9602E Single Phase unidirectional Power/Energy metering integrated circuit generates a pulse rate output, the frequency of which is proportional to the power consumption. It performs the calculation for active power.

The method of calculation SA9602E takes the power factor into account.


Energy consumption of SA9602E can be determined by the power measurement being integrated over time.

This innovative universal single phase power/ energy metering integrated circuit, SA9602E is ideally suited for energy calculations in applications such as residential municipal metering and factory energy metering and control.

The SA9602E integrated circuit is available in both 14 and 20 pin dual-in-line plastic (DIP-14/ DIP-20), as well as 20 pin small outline (SOIC- 20) p
