Features:

· Provides ease of interface to systems employing a mechanical counter
· Performs bidirectional power and energy measurement
· Meets the IEC 521/1036 Specification requirements for Class 1 AC Watt hour meters
· Protected against ESD
· Allows selection of motor driver configuration
· Total power consumption rating below 25mW
· Adaptable to different types of current sensors
· Operates over a wide temperature range
· Precision voltage reference on-chip
· Selectable pulse rate
· Scaling of rated conditions provides ease of implementation for meter manufactured.


Pinout

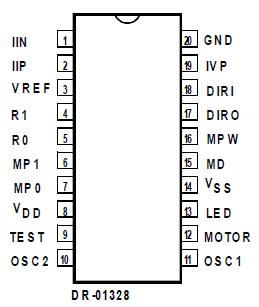

Connection Diagram


Specifications

Parameter Symbol Min Max Unit
Supply Voltage VDD_VSS -0.3 6.0 V
Current on any pin IPIN -150 +150 mA
Storage Temperature TSTG -40 +125 °C
Operating Temperature TO -25 +85 °C


* Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only. Functional operation of the device at these or any other condition above those indicated in the operational sections of this specification, is not implied. Exposure to Absolute Maximum Ratings for extended periods may affect device reliability.




Description

The SAMES SA9602M Single Phase bidirectional Power/Energy metering integrated circuit generates a pulse rate output, the frequency of which is proportional to the power consumption. The SA9602M performs the calculation for active power.

The method of calculation SA9602M takes the power factor into account.

Energy consumption of SA9602M can be determined by counting output pulses. The pulse rate for a particular application is selected according to the status of inputs MP0 and MP1.

This innovative universal single phase power/energy metering integrated circuit of SA9602M is ideally suited for energy calculations in applications utilizing a mechanical display.

The SA9602M integrated circuit is available in 20 pin dual-in-line plastic (DIP-20), as well as 20 pin small outline (SOIC-20) package types.
