SA9605A

* Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only. Functional operation of the device at these or any other conditions above those indicated in the operation sections of this specification, is not implied. Exposure to Absolute Maximum Ratings for extended periods may affect device reliability.

The SAMES SA9605A is an enhancement of the SA9105E and SA9105F, as no external capacitors are needed for the A/D converters.

The SAMES SA9605A Three Phase Power/ Energy metering integrated circuit generates a pulse rate output, the frequency of which is proportional to the absolute power consumption. The SA9605A performs the calculation for active power.

The method of calculation SA9605A takes the power factor into account.

Energy consumption of SA9605A is determined by the power measurement being integrated over time.

The output of this innovative universal three phase power/energy metering integrated circuit, SA9605A is ideally suited for applications such as residential and industrial energy metering and control.

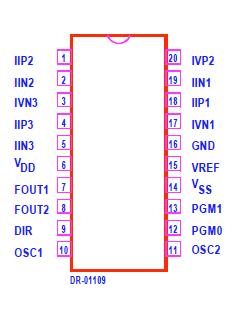

The SA9605A integrated circuit is available in both 20-pin dual-in-line plastic (DIP-20), as well as 20-pin plastic small outline (SOIC- 20) package types.
