SA9607M

*Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only. Functional operation of the device at these or any other condition above those indicated in the operational sections of this specification, is not implied. Exposure to Absolute Maximum Ratings for extended periods may affect device reliability.

The SAMES SA9607M is a single-phase bidirectional energy metering integrated circuit. It provides a mono-chip solution for energy meters with electro-mechanical displays, such as stepper motors and impulse counters.

Two current sensor inputs of SA9607M allow the measurement of energy consumption on both the live and neutral.

Direction detection of energy flow SA9607M as well as other common tamper conditions are flagged.

The power consumption of SA9607M on both the live and neutral are continuously measured and the larger of the two is selected
for energy metering.

The SA9607M drives the calibration LED and the electromechanical counter directly.

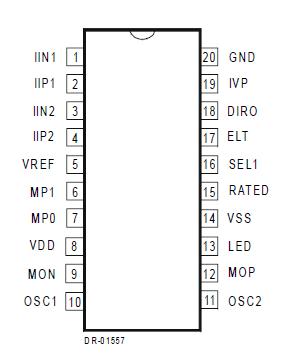

The SA9607M integrated circuit is available in 20 pin dual-inline plastic (DIP-20) and small outline (SOIC-20) package
types.
