SA9607P

Features: · Provides direct interface to mechanical counters· Calibration and setup stored on external EEPROM - no trimpots required· Monitors both Live and Neutral for tamper detection· Performs bidirectional energy measurement· Flexible programmable features· Meets the IEC 521/1036 Specification...

product image

SA9607P Picture
See larger image
SeekIC No. : 004483859 Detail

SA9607P: Features: · Provides direct interface to mechanical counters· Calibration and setup stored on external EEPROM - no trimpots required· Monitors both Live and Neutral for tamper detection· Performs bi...

SA9607P Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SA9607P
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Provides direct interface to mechanical counters
· Calibration and setup stored on external EEPROM - no trimpots required
· Monitors both Live and Neutral for tamper detection
· Performs bidirectional energy measurement
· Flexible programmable features
· Meets the IEC 521/1036 Specification for Class 1 AC Watt hour meters
· Total power consumption rating below 25mW
· Adaptable to different types of sensors
· Operates over a wide temperature range
· Precision voltage reference on chip.


Pinout

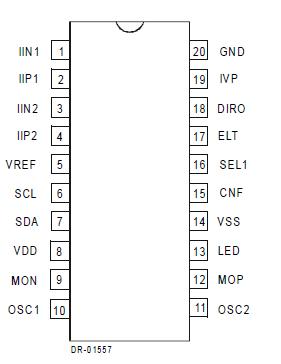

Connection Diagram


Specifications

Parameter Symbol Min Max Unit
Supply Voltage VDD -VSS -0.3 6.0 V
Current on any pin IPIN -150 +150 mA
Storage Temperature TSTG -40 +125 °C
Operating Temperature TO -25 +85 °C


*Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only. Functional operation of the device at these or any other condition above those indicated in the operational sections of this specification, is not implied. Exposure to Absolute Maximum Ratings for extended periods may affect device reliability.




Description

The SAMES SA9607P is a single-phase bidirectional energy metering integrated circuit. It provides a cost effective solution for energy meters with electro-mechanical displays, such as stepper motors and impulse counters.

Two current sensor SA9607P inputs allow the measurement of energy consumption on both the live and neutral lines.

Direction detection of energy SA9607P flow as well as other common tamper conditions are flagged.

The power consumption of SA9607P on both the live and neutral are continuously measured and the larger of the two is selectedfor energy metering.

The SA9607P drives the calibration LED and the electromechanical counter directly.

The SA9607P does not require any external trim-pots. All required calibration and configuration data is read from a
small external EEPROM.

The SA9607P integrated circuit is available in 20 pin dual-inline plastic (DIP-20) and small outline (SOIC-20) package
types.
