SAA4952WP

· Support for acquisition, display and deflection PLL
· 50/100 Hz (or 60/120 Hz) scan conversion
· Progressive scan 50 Hz/1250 lines (60 Hz/1050 lines) interlaced or 50 Hz/625 lines (60 Hz/525 lines) non-interlaced in serial memory structure
· 50 Hz/625 lines (60 Hz/525 lines) mode support for a PALplus system and basic features
· Acquisition frequencies 12, 13.5, 16 and 18 MHz and display frequencies of 27, 32 and 36 MHz (2fH) in every combination, horizontal compression (support for 4 : 3 and 14 : 9 display on a 16 : 9 screen) and horizontal zoom
· Configured as a three clock system with a fixed 27 MHz deflection clock (deflection controlled by the TDA9151)
· Configured as a two-clock system (deflection controlled by e.g. TDA9152)
· Single clock for 50 Hz vertical and 15.625 kHz horizontal frequency
· Support of new IC generations [PAN-IC (SAA4995WP), VERIC (SAA4997H), MACPACIC (SAA4996H) and LIMERIC (SAA4945H)]
· Support for two or one field memories
· Still picture
· Support for memory types such as TMS4C2970/71
· Internal simple Multi-PIP (3 ×3) or (4 ×4) conversion
· Multi-PIP support with an external PIP module/full performance
· Programmable via microcontroller port
· Capability of reading the length of incoming fields via microcontroller port
· Golden SCART option (clock generation for TDA9151)
· Acquisition is able to operate with external sync and clock of digital sources (slave mode)
· Generator mode for the display, stable still picture or OSD in the event of no input source.

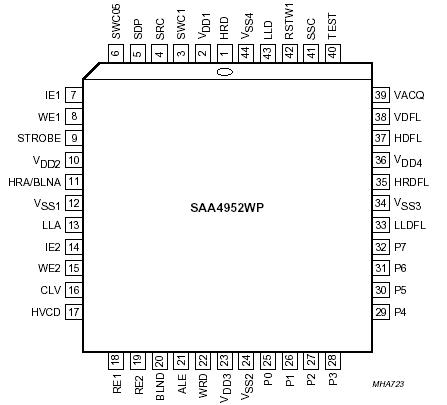

The memory controller SAA4952WP is the improved version of the SAA4951WP. The circuit has been designed for high-end TV sets using 2fH technics. For basic feature modules a 1fH mode can be activated. In this situation the controller supplies the system with a line-locked clock. The SAA4952WP has been designed to be able to operate in the hardware environment of the SAA4951WP.

The SAA4952WP provides all necessary write, read and clock pulses to control different field memory concepts. Furthermore the drive signals for the horizontal and vertical deflection power stages are also generated.

The SAA4952WP is connected to a microcontroller via an 8-bit data bus. The microcontroller receives commands via the I²C-bus. Due to this fact the START and STOP conditions of the main output control signals are programmable and the SAA4952WP can be set in different function modes depending on the TV feature concept that is used.
