SAA4977H

Features: · Internal prefilter· Clamp circuit· Analog AGC· Line locked PLL· Triple YUV 8-bit Analog-to-Digital Converter (ADC)· Horizontal compression· Field rate up-conversion (50 to 100 Hz or 60 to 120 Hz)· 4 : 1 : 1 digital I/O interface· Digital CTI (DCTI)· Digital luminance peaking· Triple 10...

product image

SAA4977H Picture
See larger image
SeekIC No. : 004483912 Detail

SAA4977H: Features: · Internal prefilter· Clamp circuit· Analog AGC· Line locked PLL· Triple YUV 8-bit Analog-to-Digital Converter (ADC)· Horizontal compression· Field rate up-conversion (50 to 100 Hz or 60 t...

SAA4977H Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAA4977H
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Internal prefilter
· Clamp circuit
· Analog AGC
· Line locked PLL
· Triple YUV 8-bit Analog-to-Digital Converter (ADC)
· Horizontal compression
· Field rate up-conversion (50 to 100 Hz or 60 to 120 Hz)
· 4 : 1 : 1 digital I/O interface
· Digital CTI (DCTI)
· Digital luminance peaking
· Triple 10-bit Digital-to-Analog Converter (DAC)
· Memory controller
· Embedded microprocessor
· 16 kbyte ROM
· 256 byte RAM
· I2C-bus interface
· Synchronous No parity Eight bit Reception and Transmission (SNERT) interface.


Pinout

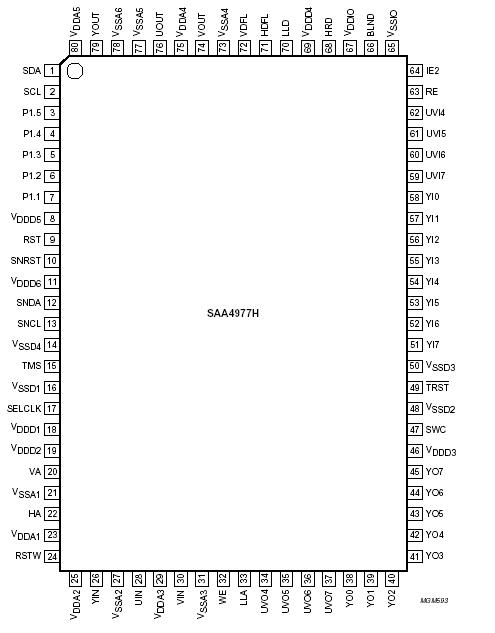

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
VDDA(1,2,3) analog supply voltage front-end -0.5 +5.25 V
VDDD(1,2,3) digital supply voltage front-end -0.5 +5.25 V
VDDA(4,5) analog supply voltage back-end -0.5 +3.45 V
VDDD(4,5,6) digital supply voltage back-end -0.5 +3.45 V
VDDIO digital I/O supply voltage back-end -0.5 +5.25 V
Vi input voltage for all I/O pins -0.5 +5.25 V
Tstg storage temperature -20 +150 °C
Tamb operating ambient temperature -20 +60 °C



Description

The SAA4977H is a video processing IC providing analog YUV interfacing, video enhancing features, memory controlling and an embedded 80C51 microprocessor core. It is applicable especially for field rate up-conversion (50 to 100 Hz or 60 to 120 Hz) in cooperation with a 2.9 Mbit field memory. SAA4977H is designed for applications together with:
SAA4955/56TJ, TMS4C2972/73 (serial field memories)
SAA4990H (PROZONIC)
SAA4991WP (MELZONIC).
