SAA4990H

Features: · Progressive scan conversion (262.5 to 525 or 312.5 to 625 lines/field)· Field rate up-conversion (50 to 100 Hz or 60 to 120 Hz)· Line flicker reduction· Noise and cross-colour reduction· Variable vertical sample rate conversion· Movie phase detection· Synchronous No parity Eight bit Re...

product image

SAA4990H Picture
See larger image
SeekIC No. : 004483916 Detail

SAA4990H: Features: · Progressive scan conversion (262.5 to 525 or 312.5 to 625 lines/field)· Field rate up-conversion (50 to 100 Hz or 60 to 120 Hz)· Line flicker reduction· Noise and cross-colour reduction·...

SAA4990H Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAA4990H
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Progressive scan conversion (262.5 to 525 or 312.5 to 625 lines/field)
· Field rate up-conversion (50 to 100 Hz or 60 to 120 Hz)
· Line flicker reduction
· Noise and cross-colour reduction
· Variable vertical sample rate conversion
· Movie phase detection
· Synchronous No parity Eight bit Reception and Transmission (SNERT) interface.

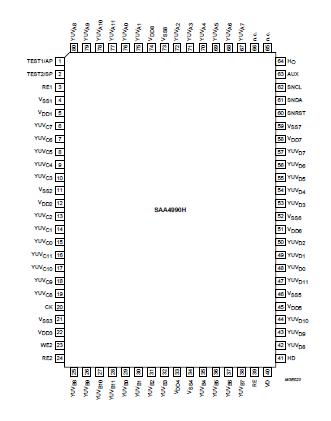

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
VI input voltage -0.5 +7 V
VDDD digital supply voltage -0.5 +7 V
VDDA analog supply voltage -0.5 +7 V
Tstg storage temperature -65 +150 °C
Tamb operating ambient temperature 0 70 °C



Description

The Progressive scan-Zoom and Noise reduction IC, abbreviated as PROZONIC, SAA4990H is designed for applications together with:
  SAA4951WP Economy Controller (ECO3)
  SAA4952H (memory controller)
  SAA7158WP Back END IC (BENDIC)
  SAA4995WP PANorama IC (PANIC)
  SAA4970T ECOnomical video processing Back END IC (ECOBENDIC)
  TMS4C2970/71 (serial field memories)
  TDA8755/8753A (A/D converter 4 : 1 : 1 format)
  83C652/54 type of microcontroller.
