SAA7121H

Features: · Monolithic CMOS 3.3 V device· Digital PAL/NTSC encoder· System pixel frequency 13.5 MHz· Accepts MPEG decoded data on 8-bit wide input port; input data format CB-Y-CR (CCIR 656)· Three Digital-to-Analog Converters (DACs) for Y, C and CVBS two times oversampled with 10-bit resolution· R...

product image

SAA7121H Picture
See larger image
SeekIC No. : 004483987 Detail

SAA7121H: Features: · Monolithic CMOS 3.3 V device· Digital PAL/NTSC encoder· System pixel frequency 13.5 MHz· Accepts MPEG decoded data on 8-bit wide input port; input data format CB-Y-CR (CCIR 656)· Three D...

SAA7121H Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAA7121H
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Monolithic CMOS 3.3 V device
· Digital PAL/NTSC encoder
· System pixel frequency 13.5 MHz
· Accepts MPEG decoded data on 8-bit wide input port; input data format CB-Y-CR (CCIR 656)
· Three Digital-to-Analog Converters (DACs) for Y, C and CVBS two times oversampled with 10-bit resolution
· Real-time control of subcarrier
· Cross-colour reduction filter
· Closed captioning encoding and World Standard Teletext (WST) and North-American Broadcast Text
    System (NABTS) teletext encoding including sequencer and filter
· Line 23 Wide Screen Signalling (WSS) encoding
· Fast I2C-bus control port (400 kHz)
· Encoder can be master or slave
· Programmable horizontal and vertical input synchronization phase
· Programmable horizontal sync output phase
· Internal Colour Bar Generator (CBG)
· 2 ×2 bytes in lines 20 (NTSC) for copy guard management system can be loaded via I2C-bus
· Down mode of DACs
· Controlled rise/fall times of synchronization and blanking output signals
· MacrovisionTM(1) Pay-per-View copy protection system rev. 7.01 and rev. 6.1 as option; this applies to
   SAA7120H  only. The device is protected by USA patent numbers 4631603, 4577216 and 4819098 and other
   intellectual property rights. Use of the Macrovision anti-copy process in the device is licensed for non-
   commercial  home use only. Reverse engineering or disassembly is prohibited. Please contact your nearest
   Philips Semiconductors sales office for more information
· QFP44 package.


Application

Applications that are described herein for any of these products are for illustrative purposes only. Philips Semiconductors make no representation or warranty that such applications will be suitable for the specified use without further testing or modification.




Pinout

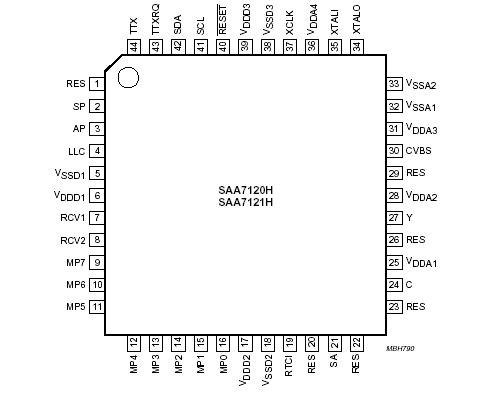

Connection Diagram


Description

The SAA7120H; SAA7121H encodes digital YUV video data to an NTSC or PAL CVBS or S-video signal.

The SAA7120H; SAA7121H accept CCIR compatible YUV data with 720 active pixels per line in 4 : 2 : 2 multiplexed formats, for example MPEG decoded data. It includes a sync/clock generator and on-chip DACs.
