SAA7151B

Features: ` 8-bit performance on chip for luminance and chrominance signal processing for PAL, NTSC and SECAM standards` Separate 8-bit luminance and 8-bit chrominance input signals from Y/C, CVBS, S-Video (S-VHS or Hi8) sources` SCART signal insertion by means of RGB/YUV convertion; fast switch h...

product image

SAA7151B Picture
See larger image
SeekIC No. : 004484009 Detail

SAA7151B: Features: ` 8-bit performance on chip for luminance and chrominance signal processing for PAL, NTSC and SECAM standards` Separate 8-bit luminance and 8-bit chrominance input signals from Y/C, CVBS, ...

SAA7151B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAA7151B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` 8-bit performance on chip for luminance and chrominance signal processing for PAL, NTSC and SECAM standards
` Separate 8-bit luminance and 8-bit chrominance input signals from Y/C, CVBS, S-Video (S-VHS or Hi8) sources
` SCART signal insertion by means of RGB/YUV convertion; fast switch handling
` Horizontal and vertical sync detection for all standards
` Real time control output RTCO
` Fast sync recovery of vertical blanking for VCR signals (bottom flutter compensation)
` Controls via the I2C-bus
` User programmable aperture correction (horizontal peaking)
` Cross-colour reduction by chrominance comb-filtering (NTSC) or by special cross-colour cancellation (SECAM)
` 8-bit quantization of output signals in 4:1:1 or 4:2:2 formats
` 720 active samples per line
` The YUV bus supports a data rate of 13.5 MHz (CCIR 601).
(864 *fH) for 50 Hz
(858 *fH) for 60 Hz
` Compatible with memory-based features (line-locked clock)
` One 24.576 MHz crystal oscillator for all standards


Pinout

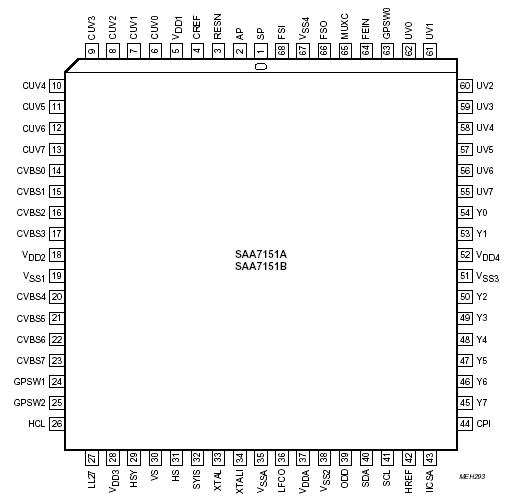

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
VDD supply voltage (pins 5, 18, 28, 37, 52) -0.5 7.0 V
Vdiff GND difference voltage VSS A - VSS(1 to 4) - ±100 mV
VI voltage on all input/output pins -0.5 VDD + 0.5 V
VO voltage on all outputs (IO max = 20 mA) -0.5 VDD + 0.5 V
Ptot total power dissipation - 2.5 W
Tstg storage temperature range -65 150 °C
Tamb operating ambient temperature range 0 70 °C
VESD electrostatic handling(1) for all pins - ±2000 V

Note
1. Equivalent to discharging a 100 pF capacitor through a 1.5 kW series resistor; inputs and outputs are protected against electrostatic discharge in normal handling. Normal precautions appropriate to handle MOS devices is recommended ( "Handling MOS Devices").




Description

The SAA7151B is a digital multistandard colour-decoder having two 8-bit input channels, one for CVBS or Y, the other for chrominance or time-multiplexed colour-difference signals.
