SAA7183A

` Monolithic CMOS 3.3 V device with 5 V input stages
` Digital PAL/NTSC/SECAM encoder
` System pixel frequency 13.5 MHz
` Accepts MPEG decoded data on 8-bit wide input port. Input data format Cb, Y, Cr etc. "(CCIR 656) " or Y and Cb, Cr on 16 lines
` Three DACs for CVBS, Y and C operating at 27 MHz with 10 bit resolution
` Three DACs for RGB operating at 27 MHz with 9 bit resolution, RGB sync on CVBS and Y
` Analog multiplexing between internal RGB and external RGB on-chip
` CVBS, Y, C and RGB output simultaneously
` Closed captioning and teletext encoding including sequencer and filter
` Line 23 wide screen signalling encoding
` On-chip Cr, Y, Cb to RGB dematrix, including gain adjustment for Y and Cr, Cb, optionally to be by-passed for Cr, Y, Cb output on RGB DACs
` Fast I2C-bus control port (400 kHz)
` Encoder can be master or slave
` Programmable horizontal and vertical input synchronization phase
` Programmable horizontal sync output phase
` Internal Colour Bar Generator (CBG)
` Overlay with Look-Up Tables (LUTs) 8 * 3 bytes
` Macrovision Pay-per-View copy protection system as option, also used for RGB output.

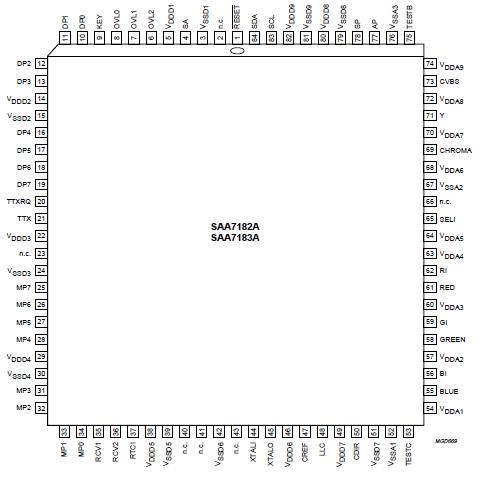

The SAA7182A; SAA7183A encodes digital YUV video data to an NTSC, PAL, SECAM CVBS or S-Video signal and also RGB.

Optionally, the YUV to RGB dematrix SAA7182A; SAA7183A can be by-passed providing the digital-to-analog converted Cb, Y, Cr signals instead of RGB.

The SAA7182A; SAA7183A accept CCIR compatible YUV data with 720 active pixels per line in 4 : 2 : 2 multiplexed formats, for example MPEG decoded data. It includes a sync/clock generator and on-chip Digital-to-Analog Converters (DACs).

The SAA7182A; SAA7183A are compatible to the DIG-TV2 chip family.
