Product Details

Description



Features:

· I2S bus output
· Biphase audio signal (Satellite radio, compact disc and DAT)

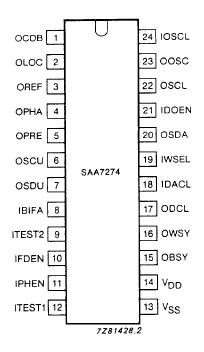

Pinout

Connection Diagram


Specifications

PARAMETER CONDITIONS SYMBOL MIN. MAX. UNIT
Supply voltage range   VDD -0.5 7.0 V
Input voltage note 1 VI -0.5 VDD+0.5 V
Maximum input current   IIM - ±10 mA
Maximum output current   IOM - ±10 mA
Maximum supply current   ISS, IDD - ±50 mA
Total power dissipation   Ptot - 500 mW
Storage temperature range   Tstg -55 +150 °C
Operating ambient temperature range   Tamb -40 +70 °C

Note
1. Input voltage should not exceed 7 V.


Description

The SAA7274 is an Audio Digital Input Circuit (ADIC) which converts digital audio signals in accordance with the IEC/EBU standards, IEC tech. com. No. 84, secr. 50, Jan. 1987 into an equivalent binary value of data and control bits.
The output function of SAA7274 is to convert the equivalent binary value of data bits (for each channel) into a serial
digital audio signal which conforms to the I2S format.
