SAA7366

Features: ` Integrated buffers for simple interfacing to analog inputs` 4 flexible serial interface modes` Overload detection of digital signal -1 dB amplitude` Selectable high-pass filter` 18-bit serial output` 3.4 to 5.5 V operation of digital part` Standby mode` SO24 package` Small non-critical...

product image

SAA7366 Picture
See larger image
SeekIC No. : 004484061 Detail

SAA7366: Features: ` Integrated buffers for simple interfacing to analog inputs` 4 flexible serial interface modes` Overload detection of digital signal -1 dB amplitude` Selectable high-pass filter` 18-bit s...

SAA7366 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAA7366
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Integrated buffers for simple interfacing to analog inputs
` 4 flexible serial interface modes
` Overload detection of digital signal -1 dB amplitude
` Selectable high-pass filter
` 18-bit serial output
` 3.4 to 5.5 V operation of digital part
` Standby mode
` SO24 package
` Small non-critical PCB layout.


Application

The device is designed for digital acquisition of analog audio signals for digital audio systems such as:
· CD-recordable
· Digital Compact Cassette (DCC)
· Digital Audio Tape (DAT).


Pinout

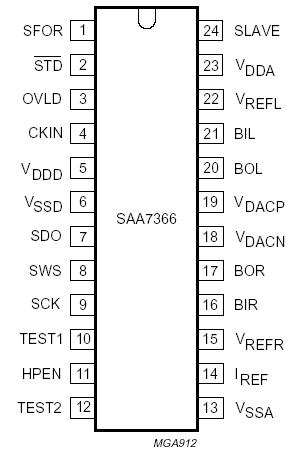

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VDDA analog supply voltage note 1 -0.5 +6.5 V
VI DC input voltage   -0.5 +6.5 V
IIK DC input diode current   - ±20 mA
VO DC output voltage   -0.5 VDD +0.5 V
IO DC output source or sink current   - ±20 mA
IDDtot total DC supply current   - ±0.5 A
ISStot total DC supply current   - ±0.5 A
Tamb operating ambient temperature   -40 +85 °C
Tstg storage temperature   -65 +150 °C
Ves1 electrostatic handling note 2 -2000 +2000 V
Ves2 electrostatic handling note 3 -200 +200 V
Notes
1. VSSD and VSSA pins must be externally connected to a common potential.
2. Equivalent to discharging a 100 pF capacitor via a 1.5 kW series resistor with a rise time of 15 ns.
3. Equivalent to discharging a 200 pF capacitor via a 2.5 mH series inductor.


Description

The SAA7366 is a CMOS cost effective stereo analog-to-digital converter (ADC) using the Philips bitstream conversion technique.
