Features:

· Clock recovery
· Differential decoding
· Main frame synchronization
· Swapping half-frames in case of inversion
· Unscrambling
· Demultiplexing
· Subframe synchronization
· Error correction and concealment
· Scale factor decoding with error correction
· Shift into the original values using the scale factors
· Mute in case of synchronization loss

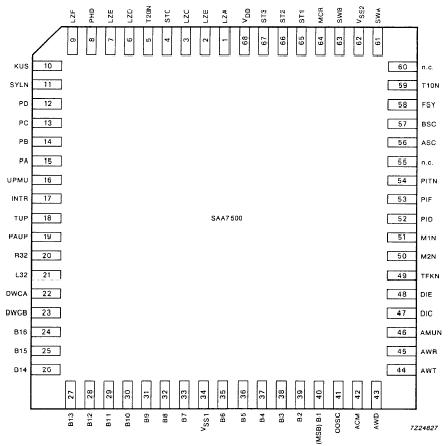

Pinout

Connection Diagram

Specifications

PARAMETER	SYMBOL	MIN.	MAX.	UNIT
Supply voltage range Input voltage range(1) Input current Output current Supply current in VSS Supply current in VDD Total power dissipation Operating ambient temperature range Storage temperature range	V_DDV_I I_I I_OI_SS I_DD P_tot T_ambT_stg	-0.5 -0.5 - - - - - -25 -55	7.0 V_DD+0.5 ± 10 ± 10 28 28 500 +85 +150	V V mA mA mA mA mW °C °C

Note
1. V_DD + 0.5 must not exceed 7.0 V.

Description

The SAA7500 performs a decoder function for digital satellite sound broadcasting tuners. It is designed to decode one of 16 stereo channels broadcasting audio signals in accordance with the German standard -Technische Richtlinie ARD/ZDF Nr. 3R1.
