Features: 2.1 General
` Programmable baseband processor and system controller for cable replacement wireless audio
` Supports various audio compression formats
` Wireless audio protocol can make trade-off between quality, number of channels, bandwidth and range
` Supports various transmission frequencies
` High integration allows for two-chip applications
` Embedded ROM with wireless audio software library.
2.2 Hardware
` Audio PLL and system PLL
` Read-Solomon encoder and decoder
` SPDIF interface
` Low cost low power EPICS7B DSP core with hardware debugger and JTAG interface
` Integrated memories:
- 24/6 kWords program ROM/RAM (bit width: 32 bits)
- 12 kWords X data RAM (bit width: 24 bits)
- 12/2 kWords Y data ROM/RAM (bit width: 12 bits).
` Interrupt controller
` DMA controller
` Oscillator and time base unit with programmable clocks
` Embedded LDO regulators and DC-to-DC converters for on-chip and off-chip supply voltage needs
` Power control unit
` Power on and power off switching with battery supply
` Reed-Solomon codec unit
` Serial radio interface unit
` High speed UART
` General purpose digital I/O block with 14 inputs, all of which generate interrupts
` I2C-bus master/slave
` I2C-bus for radio chip control
` Control 10-bit ADC with four inputs
` Two serial (I2S-bus/Japanese) digital audio inputs with independent clocks and word-select
` Two serial (I2S-bus/Japanese) digital audio outputs with shared clock and word-select
` Integrated 16-bit stereo DAC (line output)
` Integrated stereo headphone amplifier
` Programmable Gain Amplifier (PGA) (line input)
` Low noise microphone amplifier (microphone input)
` Integrated 16-bit stereo ADC
` Watchdog timer.
2.3 Software
` Stereo Sub Band Coding (SBC) encoder/decoder
` Stereo MPEG layer 3 (MP3) decoder
` Reed-Solomon encoder/decoder driver
` Sample rate converter
` I2C-bus master/slave driver
` Serial radio interface driver
` RF radio chip driver
` UART driver
` Control 10-bit ADC driver
` Power consumption management
` ADC, DAC and headphone driver
` Wireless audio protocol library.
Application· Wireless front speakers or wireless surround speakers for home theatre
· Wireless indoor headphones
· Wireless second room audio sets

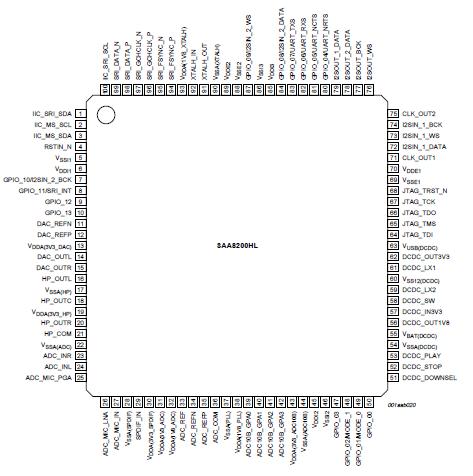

· Wireless headsets.Pinout
Specifications
| Symbol |
Parameter |
Conditions |
Min |
Max |
Unit |
| VDDI |
core supply voltage
(internal) |
|
-0.5 |
2.5 |
V |
| VDDE |
core supply voltage
(external) |
|
-0.5 |
4.6 |
V |
| VDDA(1V8) |
1.8 V supply voltage |
|
-0.5 |
2.5 |
V |
| VDDA(3V3) |
3.3 V supply voltage |
|
-0.5 |
4.6 |
V |
| VI |
input voltage |
normal digital input pins |
-0.5 |
VDDE + 0.5 |
V |
5 V tolerant digital input
pins |
-0.5 |
6.0 |
V |
| analog input pins |
-0.5 |
VDDA3v3 + 0.5 |
V |
| pin XTALH_IN |
-0.5 |
2.0 |
V |
| Tamb |
ambient temperature |
|
-20 |
+70 |
°C |
| Tj |
junction temperature |
|
-40 |
+125 |
°C |
| Tstg |
storage temperature |
|
-65 |
+125 |
°C |
| Txtal |
crystal temperature |
|
- |
150 |
°C |
| VBAT(DCDC) |
battery voltage |
single battery |
0.9 |
1.6 |
V |
| double battery |
1.8 |
3.2 |
V |
| VUSB(DCDC) |
USB voltage range |
|
4.0 |
5.5 |
V |
| Vesd |
electrostatic
discharge voltage |
[1] |
<tbd> |
<tbd> |
V |
| [2] |
<tbd> |
<tbd> |
V |
[1] Equivalent to discharging a 100 pF capacitor via a 1.5 k series resistor.
[2] Equivalent to discharging a 200 pF capacitor via a 0.75 H series inductor.DescriptionThe Ensation Base, SAA8200HL, is part of the integrated wireless audio system chip set offered by Philips. This chip set enables the development of low cost wireless digital audio systems. The chip set contains:
• An integrated wireless audio baseband chip (SAA8200HL)
• An integrated wireless audio radio chip (TEA7000).
Integrating a wireless audio link in a home theatre system to remove part of the wiring is a logical application of wireless audio transmission. A very important property of this wireless audio system is the low end-to-end (audio-in at transmit side to audio-out at receive side) system latency, SAA8200HL is below 20 ms.
A second important property is the robustness and reliability of the wireless audio link, the SAA8200HL which is handling the signal processing and the system control enables this. Furthermore, the SAA8200HL provides the flexibility to allow designers to make trade-offs between air bit-rate, number of transported audio channels, audio formats, audio coding bit-rates, range, number of receiving-slaves and more.
Due to its low power consuming design, the SAA8200HL enables battery powered applications. It does this all with a minimum of external components due to its high level of integration.
Together with the TEA7000, the SAA8200HL can be used to implement an indoor wireless link for audio applications (system specific). Together with an AV-compliant Bluetooth radio module, the SAA8200HL can be used to implement a Bluetooth wireless audio functionality.
The SAA8200HL enables a low power, low cost two-chip solution with a maximum amount of functions integrated on the device, taking into account strict time-to-market constraints.
SAA8200HL Data Sheet
