SAB9079HS

Features: · Suitable for single PIP, double window and multi PIPapplications· Data formats 4 : 1 : 1 (all modes) and 4 : 2 : 2 (most modes)· Sample rate of 14 MHz, 720 Y*-pixels/line· Horizontal reduction factors 1/1 3/4, 2/3, 1/2, 1/3, 1/4 and 1/6· Vertical reduction factors 1/1, 1/2, 1/3 and 1/4...

product image

SAB9079HS Picture
See larger image
SeekIC No. : 004484167 Detail

SAB9079HS: Features: · Suitable for single PIP, double window and multi PIPapplications· Data formats 4 : 1 : 1 (all modes) and 4 : 2 : 2 (most modes)· Sample rate of 14 MHz, 720 Y*-pixels/line· Horizontal red...

SAB9079HS Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAB9079HS
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Suitable for single PIP, double window and multi PIP
applications
· Data formats 4 : 1 : 1 (all modes) and 4 : 2 : 2 (most modes)
· Sample rate of 14 MHz, 720 Y*-pixels/line
· Horizontal reduction factors 1/1 3/4, 2/3, 1/2, 1/3, 1/4 and 1/6
· Vertical reduction factors 1/1, 1/2, 1/3 and 1/4
· PIP OSD for the sub channels displayed
· Detection of PAL/NTSC with overrule bit
· CTE/LTE like circuits in display part
· Replay with definable auto increment, picture sample rate and picture number auto wrap
· Programmable Y*UV to RGB conversion matrix with independent coefficients for NTSC and PAL sources
· Display clock and synchronisation are derived from the main PLL
· Three 8-bit Digital-to-Analog Converters (DACs)
· Three 8-bit Analog-to-Digital Converters (ADCs) (7-bit performance) with clamp circuit for each acquisition channel
· Main and sub can write to the same VDRAM address spaces under certain conditions; the reduction factors should be the same
· Y* and UV pedestals on the acquisition sides
· Independent vertical filtering with 1 : 1 for UV and Y* at the display part.


Pinout

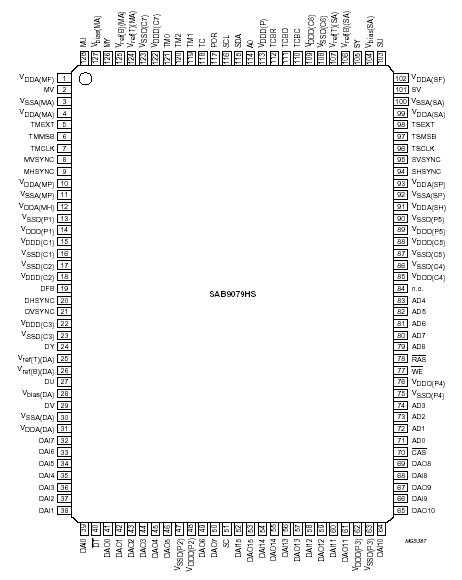

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VDDD(P) digital supply voltage for the peripheral   -0.5 +6.0 V
VDDD(C) digital supply voltage for the core   -0.5 +4.0 V
VDDA analog supply voltage   -0.5 +4.0 V
Pmax maximum power dissipation   - 1.5 W
Tstg storage temperature   -25 +150 °C
Tamb ambient temperature   0 70 °C
VESD electrostatic handling note 1 - 3000 V
note 2 - 300 V
Notes
1. Human body model; see "UZW-B0/FQ-B302".
2. Machine model; see "UZW-B0/FQ-A302".


Description

The SAB9079HS is a PIP controller for a multistandard application environment in combination with a multistandard decoder such as for example TDA8310, TDA9143 or TDA9321H.

The SAB9079HS inserts one or two live video signals with reduced sizes into the main/display video signal. All video signals are expected to be analog baseband signals. The analog signals are stripped signals without sync. Therefore the luminance signal is referred to as Y*. The conversion into the digital environment and back is done on-chip as well as the internal clock generation.

The SAB9079HS is suitable for single PIP, double window and multi PIP applications.
