SAB9077H

Features: · 50/60 Hz PIP modes possible· Twin PIP in interlaced mode at 8-bit resolution· Sub-title mode features built in· Large display fine positioning area, both channels independent· Only 2 Mbit needed as external VDRAM (2×1 Mbit or 1 × 2 Mbit)· Four 8-bit Analog-to-Digital Converters (ADCs; ...

product image

SAB9077H Picture
See larger image
SeekIC No. : 004484166 Detail

SAB9077H: Features: · 50/60 Hz PIP modes possible· Twin PIP in interlaced mode at 8-bit resolution· Sub-title mode features built in· Large display fine positioning area, both channels independent· Only 2 Mbi...

SAB9077H Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAB9077H
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 50/60 Hz PIP modes possible
· Twin PIP in interlaced mode at 8-bit resolution
· Sub-title mode features built in
· Large display fine positioning area, both channels independent
· Only 2 Mbit needed as external VDRAM (2×1 Mbit or 1 × 2 Mbit)
· Four 8-bit Analog-to-Digital Converters (ADCs; > 7-bit performance) with clamp circuit
· Most PIP modes handle interlaced pictures without joint line error
· Two PLLs which generate the line-locked clocks for the acquisition channels
· Display PLL to generate line-locked clock for the display
· Three 8-bit Digital-to-Analog Converters (DACs)
· 4 : 1 : 1 data format
· Data reduction factors 1 to 1, 1 to 2, 1 to 3 and 1 to 4, horizontal and vertical independent.
I2C-bus programmable
· Single and double PIP modes can be set
· Full field still mode available
· Several aspect ratios can be handled
· Reduction factors can be set freely
· Selection of vertical filtering type
· Freeze of live pictures
· Fine tuned display position, H (8-bit), V (8-bit), both channels independent
· Fine tuned acquisition area, H (4-bit), V (8-bit), both channels independent
· Eight main borders, sub-borders and background colours available
· Border and background brightness adjustable, 30%, 50%, 70% and 100% IRE
· Several type of decoder input signals can be set.


Pinout

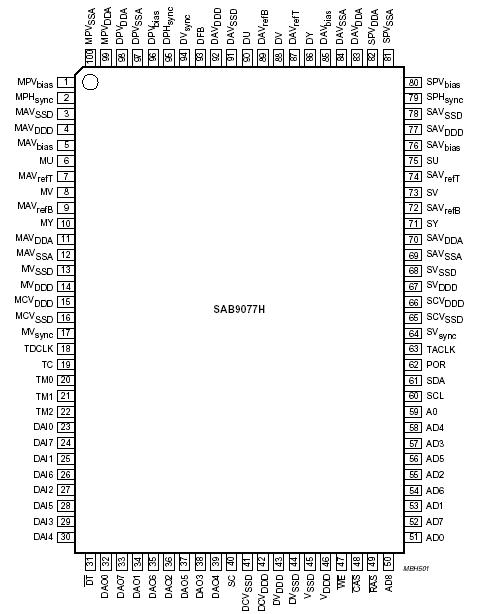

Connection Diagram
