SAB9076H

Features:

· Twin PIP in interlaced mode at 8-bit resolution
· Sub-title mode features built in
· Large display fine positioning area, both channels independent
· Only 2 Mbit required as external VDRAM (2×1 Mbit or 1×2 Mbit)
· Four 8-bit Analogue Digital Converters (ADCs; > 7-bit performance) with clamp circuit
· Most PIP modes handle interlaced pictures without joint line error
· Two PLLs which generate the line-locked clocks for the acquisition channels
· Display PLL to generate line-locked clock for the display
· Three 8-bit Digital Analogue Converters (DACs)
· 4 : 1 : 1 data format
· Data reduction factors 1 to 1, 1 to 2, 1 to 3 and 1 to 4, horizontal and vertical independent.
I²C-bus programmable
· Single and double PIP modes can be set
· Full field still mode available
· Several aspect ratios can be handled
· Reduction factors can be set freely
· Selection of vertical filtering type
· Freeze of live pictures
· Fine tuned display position, H (8-bit), V (8-bit), both channels independent
· Fine tuned acquisition area, H (4-bit), V (8-bit), both channels independent
· Eight main borders, sub-borders and background colours selectable
· Border and background brightness adjustable, 30%, 50%, 70% and 100% IRE
· Several type of decoder input signals can be set.

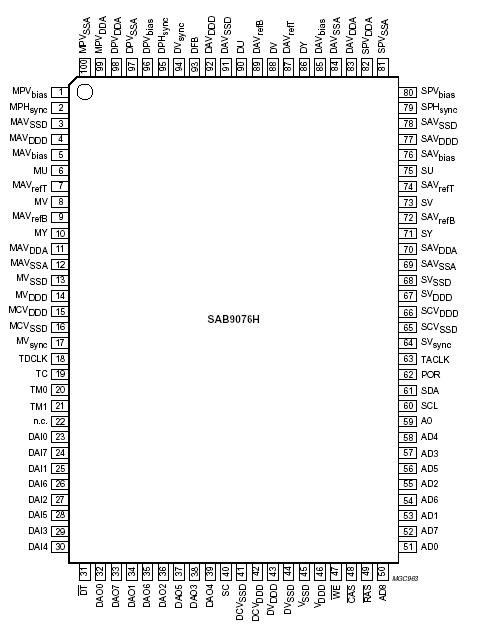

Pinout




Specifications

SYMBOL	PARAMETER	MIN.	MAX.	UNIT
VDD	supply voltage range	-0.5	+6.5	V
Pmax	maximum power dissipation	-	1.5	W
Tstg	storage temperature	-25	+150	°C
Tamb	ambient temperature	0	70	°C
Vesd	electrostatic discharge handling Human body model Machine model	-	3000(1) 300(2)	V V

Note
1. Human body model: see UZW-B0/FQ-B302; The numbers of the quality specification can be found in the "Quality Reference Handbook". The handbook can be ordered using the code 9397 750 00192.
2. Machine model: see UZW-B0/FQ-A302; The numbers of the quality specification can be found in the "Quality Reference Handbook". The handbook can be ordered using the code 9397 750 00192.


Description

The SAB9076H is a picture-in-picture controller for NTSC TV-sets. The circuit contains ADCs, reduction circuitry, memory control, display control and DACs.

SAB9076H inserts one or two live video signals with original or reduced sizes into a live video signal. All video signals are expected to be analog baseband signals.

The conversion of SAB9076H into the digital environment and back to the analog environment is carried out on chip. Internal clocks are generated by two acquisition PLLs and a display PLL.

Due to the two PIP channels of SAB9076H and a large external memory a wide range of PIP modes are offered. The emphasis is put on single-PIP, double-PIP, split-screen mode and a many multi-PIP modes.
