SAB9075H

Features: · One or two live pictures can be displayed simultaneously· Wide range of multi-Picture-In-Picture (PIP) modes available· Six 6-bit Analog-to-Digital Converters (ADC) with clamping circuit· Enhanced vertical resolution at most modes for live pictures· Two Phase-Locked-Loops (PLL) with Vo...

product image

SAB9075H Picture
See larger image
SeekIC No. : 004484164 Detail

SAB9075H: Features: · One or two live pictures can be displayed simultaneously· Wide range of multi-Picture-In-Picture (PIP) modes available· Six 6-bit Analog-to-Digital Converters (ADC) with clamping circuit...

SAB9075H Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAB9075H
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· One or two live pictures can be displayed simultaneously
· Wide range of multi-Picture-In-Picture (PIP) modes available
· Six 6-bit Analog-to-Digital Converters (ADC) with clamping circuit
· Enhanced vertical resolution at most modes for live pictures
· Two Phase-Locked-Loops (PLL) with Voltage Controlled Oscillator (VCO) to generate the line-locked clocks
· Three 7-bit Digital-to-Analog Converters (DAC)
· 4 : 1 : 1 data format
· Data reduction factors 1 to 4, 1 to 9 and 1 to 16.
I2C-bus programmable
· Different single, double and multi-PIP modes can be set
· Several aspect ratios can be handled
· Reduction factors can be set automatically and manually
· Selection of vertical filtering type
· Freeze of live pictures
· Single-PIP display position, four corners on-screen
· Multi-PIP display position, left or right on-screen
· Fine tuned display position, H (6-bit), V (6-bit)
· Fine tuned acquisition area, H (4-bit), V (4-bit)
· Channel-border and live PIP selectable
· Eight main-border, sub-border, channel-border and background colours selectable
· Border and background brightness adjustable, 30%, 50%, 70% and 100% IRE
· Several types of decoder input signals can be set
· 6-bit HUE and SAT signals (0 to 5 V) adjustable by I2C-bus
· Main and sub-audio mute controllable by I2C-bus.

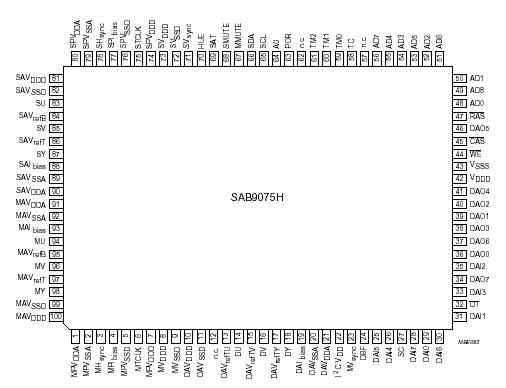

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
VDD supply voltage range -0.5 +6.5 V
VDD supply voltage variation - 0.2 V
Tstg storage temperature -25 +150 °C
Tamb ambient temperature 0 70 °C
Vesd electrostatic discharge handling - - V
Ptot thermal resistance - 1.5 W



Description

The SAB9075H is a picture-in-picture controller for the NTSC environment in combination with the Integrated NTSC decoder and sync processor TDA8315.

SAB9075H inserts one or two live video channels with reduced sizes into a live video signal. All video signals are expected to be analog baseband signals. The conversion into the digital environment of SAB9075H and back to the analog environment is carried out on-chip. Internal clocks are generated by two PLLs.

Due to the two PIP channels and a large external memory, a wide range of PIP modes are offered. The emphasis of SAB9075H is put on double-PIP and multi-PIP modes. In combination with the different border colours and some external software the IC concept can be used as an excellent channel selection tool.

Some of the I2C-bus registers are for controlling the saturation and HUE of the colours. There are also outputs of SAB9075H  for the mute function of main and sub-channel.
