Product Details

Description



Features:

5 V, 3.3 V and 2.5 V operation
Industrial temperature range
Pin compatibility with the industry-standard ST16C454/554, ST68C454/554, TL16C554
Up to 5 Mbits/s data rate at 5 V and 3.3 V and 3 Mbits/s at 2.5 V
64-byte transmit FIFO
64-byte receive FIFO with error flags
Automatic software/hardware flow control
Programmable Xon/Xoff characters
Software selectable Baud Rate Generator
Four selectable Receive and Transmit FIFO interrupt trigger levels
Standard modem interface or infrared IrDA encoder/decoder interface
Sleep mode
Standard asynchronous error and framing bits (Start, Stop, and Parity Overrun Break)
Transmit, Receive, Line Status, and Data Set interrupts independently controlled
Fully programmable character formatting:
    5-, 6-, 7-, or 8-bit characters
    Even-, Odd-, or No-Parity formats
    1-, 11 /2-, or 2-stop bit
    Baud generation (DC to 1.5 Mbit/s)
False start-bit detection
Complete status reporting capabilities
3-State output TTL drive capabilities for bi-directional data bus and control bus
Line Break generation and detection
Internal diagnostic capabilities:
    Loop-back controls for communications link fault isolation
Prioritized interrupt system controls
Modem control functions (CTS, RTS, DSR, DTR, RI, DCD ).


Pinout

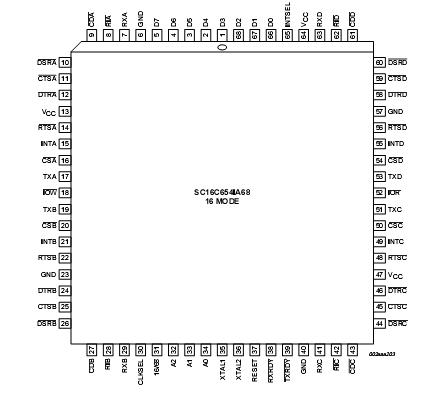

Connection Diagram


Description

  The SC16C654/654D is a 4-channel Universal Asynchronous Receiver and Transmitter (QUART) used for serial data communications. Its principal function is to convert parallel data into serial data and vice versa.TheUARTcanhandleserialdata rates up to 5 Mbits/s. It comes with an Intel or Motorola interface.

  The SC16C654/654D is pin compatible with the ST16C654 and TL16C754 and it will power-up to be functionally equivalent to the 16C454. Programming of control registers enables the added features of the SC16C654/654D. Some of these added features are the 64-byte receive and transmit FIFOs, automatic hardware or software flow control and Infrared encoding/decoding. The selectable auto-flow control feature significantlyreducessoftwareoverloadandincreasessystemefficiencywhileinFIFO mode by automatically controlling serial data flow using RTS output and CTS input signals. The SC16C654/654D also provides DMA mode data transfers through FIFO trigger levels and the TXRDY and RXRDY signals. On-board status registers provide the user with error indications, operational status,and modem interface control. System interrupts may be tailored to meet user requirements. An internal loop-back capability allows on-board diagnostics.

  The SC16C654/654Doperatesat5 V,3.3 Vand2.5 V,andtheindustrialtemperature range, and is available in plastic PLCC68 and LQFP64 packages.
