Transistors RF MOSFET Power N-Ch 125 Volt 20A
SD2931-10: Transistors RF MOSFET Power N-Ch 125 Volt 20A
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Configuration : | Single | Transistor Polarity : | N-Channel |
Frequency : | 230 MHz | Gain : | 15 dB at 175 MHz |
Output Power : | 150 W | Drain-Source Breakdown Voltage : | 125 V |
Continuous Drain Current : | 20 A | Gate-Source Breakdown Voltage : | +/- 20 V |
Maximum Operating Temperature : | + 150 C | Package / Case : | M174 |
Packaging : | Bulk |
Symbol | Parameter | Value | Unit |
V(BR)DSS | Drain Source Voltage | 125 | V |
VDGR | Drain-Gate Voltage (RGS = 1M) | 125 | V |
VGS | Gate-Source Voltage | ±20 | V |
ID | Drain Current | 20 | A |
PDISS | Power Dissipation | 389 | W |
Tj | Max. Operating Junction Temperature | 200 | |
TSTG | Storage Temperature | -65 to 150 |

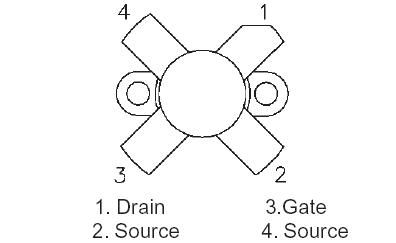

The SD2931-10 is a gold metallized N-Channel MOS field-effect RF power transistor. Being electrically identical to the standard SD2931 MOSFET, it is intended for use in 50V dc large signal applications up to 230 MHz.
The SD2931-10 is mechanical compatible to the SD2931 but offers in addition a better thermal capability (25 % lower thermal resistance), representing the best-in-class transistors for ISM applications.
Technical/Catalog Information | SD2931-10 |
Vendor | STMicroelectronics |
Category | Discrete Semiconductor Products |
Transistor Type | N-Channel |
Voltage - Rated | 125V |
Current Rating | 20A |
Package / Case | M174 |
Packaging | Bulk |
Drawing Number | * |
Lead Free Status | Lead Free |
RoHS Status | RoHS Compliant |
Other Names | SD2931 10 SD293110 497 5467 ND 4975467ND 497-5467 |
