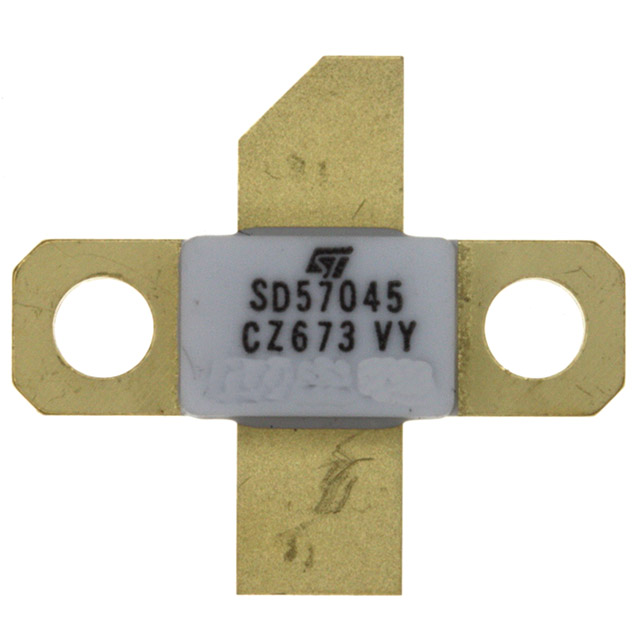

SD57045-01 Product Image

SD5 Series Datasheet download

Five Points

Part Number: SD57045-01



MFG: ST





Description: The SD57045-01 is a common source N-Channel Enhancement-Mode Lateral Field-Effect RF power transistor ...


Urgent Purchase

SD57045-01 General Description


The SD57045-01 is a common source N-Channel Enhancement-Mode Lateral Field-Effect RF power transistor designed for broadband commercial and industrial applications at frequencies up to 1.0 GHz. The SD57045-01 is designed for high gain and broadband performance operating in common source mode at 28V. It is ideal for base stations applications requiring high linearity.

SD57045-01 Maximum Ratings

Symbol
Parameter
Value
Unit
V(BR)DSS
Drain Source Voltage
65
V
VDGR
Drain-Gate Voltage (RGS = 1MW)
65
V
VGS
Gate-Source Voltage
± 20
V
ID
Drain Current
5
A
PDISS
Power Dissipation (@ Tc= 70 oC)
93
W
Tj
Max. Operating Junction Temperature
200
TSTG
Storage Temperature
-65 to 200

SD57045-01 datasheet

SD57045-01
PDF/DataSheet Download

  • Datasheet: SD57045-01
  • File Size: 239058 KB
  • Manufacturer: STMICROELECTRONICS [STMicroelectronics]
  • Click here to Download
