Part Number: SDA9189X



MFG: SIEMENS

Package Cooled: SOP



Description: The Picture Insertion Processor SDA 9189X generates a reduced size picture of an inset video channel f...


Urgent Purchase

SDA9189X General Description


The Picture Insertion Processor SDA 9189X generates a reduced size picture of an inset video channel for the purpose of combining it with another video signal (parent channel). The easy implementation of the IC into an existing system needs only a few additional external components. There is a great variety of application facilities in consumer and professional products (TV sets, VCRs, supervising monitors, multi-media, etc.).

SDA9189X Maximum Ratings

Parameter Symbol Limit Values Unit Remark
min. max.
Ambient
temperature
TA 0 70 °C
Storage
temperature
Tstg 55 125 °C
Junction
temperature
Tj   125 °C
Soldering
temperature
TSOLD   260 °C
Soldering time tSOLD   10 s
Input voltage VI 1 7 V
Output
voltage
VQ 1 7
VDD + 0.5 V
V Under all conditions at pins
XQ, OUT1 . 3;
pins XQ, OUT1 . 3
Supply
voltages
VDD 1 7 V
Supply voltage
differentials
VDD D 0.25 0.25 V
Total power
dissipation
Ptot   900 mW
ESD
protection
ESD 1 1 kV

MIL STD 883C method
3015.6
100 pF, 1500
supply pins connected to
ground

Latch-up
protection
  100 100 mA Except analog outputs, XQ

SDA9189X Features

High system integration
Filtering, field memory, RGB-matrix, DA-Conversion, clock generation, and control circuits integrated on one chip
• 4 picture sizes
1/4th, 1/9th, 1/16th, or 1/36th of normal size
High resolution display
13.5 MHz/27 MHz display clock frequency 288 luminance and 72 chrominance pixels per inset line for picture size 1/4 6-bit amplitude resolution for each incoming signal component Frame mode display in single-PIP modes Horizontal and vertical filtering Special antialias filtering for the luminance signal
Single and multi PIP display
Up to 9 pictures of 1/36th size (8 still and 1 moving)
Up to 4 pictures of 1/16th size (3 still and 1 moving)
Up to 2 pictures of 1/9th size (1 still and 1 moving)
Up to 3 pictures of 1/9th size (2 still and 1 moving) as POP display in 16:9 TV sets
(In multi-PIP modes only field mode display possible)
Multistandard applications
Automatic recognition of 625 lines/525 lines standard (inset and parent channel)
Scan conversion systems as flickerfree display systems (parent channel)
• HDTV (parent channel)
• 16:9 compatibility
Operation in 4:3 and 16:9 TV sets
4:3 inset signals on 16:9 displays (picture size 1/4 and 1/9)
16:9 inset signals on 4:3 displays (picture size 1/9 and 1/16)

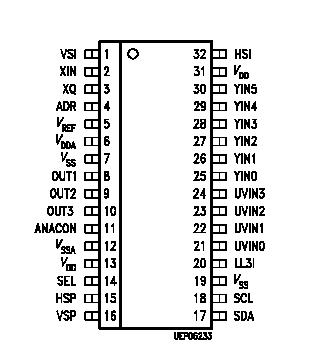

SDA9189X Connection Diagram

SDA9189X  Connection Diagram
