Purchase SDA9205-2, In-stock SDA9205-2 From SeekIC.
MFG:SIEMENS
Part Number: SDA9205-2
MFG: SIEMENS
Description: The SDA 9205-2 is a single monolithic IC containing three separate 8-bit analog to digital converters ...
- Table of contents:
SDA9205-2
-
Suppliers
DataSheet
General Description
SDA9205-2 General Description
The SDA 9205-2 is a single monolithic IC containing three separate 8-bit analog to digital converters for video (YUV) applications. It utilizes an advanced VLSI 1.2 m CMOS process providing 30-MHz sampling rates at 8 bits. Different digital output multiplex formats are selectable on chip via several control inputs, compatible to inputs of all Siemens Featureboxes, Siemens TV-SAM, and CCIR 656 output format.
The ADCs have no missing codes over the full operating temperature range of 0 to + 70 °C. Operation is from + 5 V DC-power supply.
SDA9205-2 Maximum Ratings
| Parameter | Symbol | Limit Values | Unit | |
| min. | max. | |||
| Supply voltages1) | VCC, VDD | 6.5 | V | |
| Input voltage range all inputs | VI | 0.3 | VCC + 0.3 | V |
| Ambient temperature | TA | 0 | 70 | °C |
| Storage temperature | Tstg | 55 | 125 | °C |
SDA9205-2 Features
Three equivalent CMOS A/D converters on chip
30-MHz sample rate
8-bit resolution
No external sample & hold required
On-chip input buffer for each analog channel
Internal clamping circuits for each of the ADCs
Different digital output multiplex formats:
3 independent unmultiplexed 8-bit outputs
Multiplexed formats compatible to inputs of all Siemens Featureboxes and Siemens TV-SAM
CCIR 656 output format
Overflow and underflow outputs
30-MHz sample rate
8-bit resolution
No external sample & hold required
On-chip input buffer for each analog channel
Internal clamping circuits for each of the ADCs
Different digital output multiplex formats:
3 independent unmultiplexed 8-bit outputs
Multiplexed formats compatible to inputs of all Siemens Featureboxes and Siemens TV-SAM
CCIR 656 output format
Overflow and underflow outputs

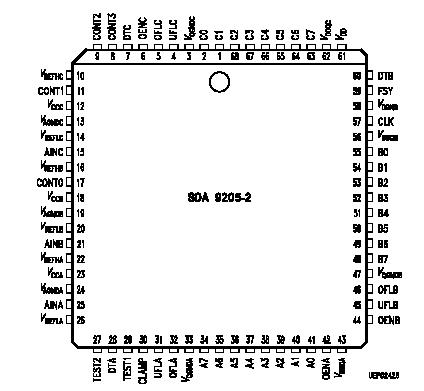

SDA9205-2 Connection Diagram
SDA9205-2
PDF/DataSheet Download
- Datasheet: SDA9205-2
- File Size: 581136 KB
- Manufacturer: SIEMENS [Siemens Semiconductor Group]
- Click here to Download
