MFG:INFINEON Package Cooled:PLCC
MFG: INFINEON
Package Cooled: PLCC
Description: The MSC III is a component of the TV-SAM Featurebox and is responsible for driving the picture memory ...
The MSC III is a component of the TV-SAM Featurebox and is responsible for driving the picture memory devices (TV-SAMs) and generating sync signals (figure 6). Together with the other devices of the Featurebox it enhances picture quality and offers a number of special operating modes.
The MSC III is set via the I2C Bus, it being possible to switch the I2C Bus address by hardware so that implementation of a simple frame Featurebox is possible in conjunction with the signal MUX supplied by the MSC III.
Other major output signals of the SDA 9220-5, in addition to the clocks LL3X (13.5 MHz) and LL1.5X (27 MHz), are the memory-driving signals (RA, RB, WT, RE, SCAD, SCA) and the sync signal CSY for the teletext device. The horizontal sync signals (HS2, BLN2) and the vertical sync signals (VS1, VS2) are also generated.
| Parameter | Symbol | Limit Values | Unit | Remarks | ||
| min. | typ. | max. | ||||
| Ambient temperature | TA | 0 | 70 | °C | ||
| Storage temperature | Tstg | 55 | 125 | °C | ||
| Thermal resistance | Rth SA | 50 | K/W | |||
| Supply voltage | VDD | 0.3 | 6 | V | ||
| Input voltage | VI | 0.3 | 6 | V | ||
| Total power dissipation | Ptot | 1.25 | W | |||
Large area flicker elimination through field doubling
Additional elimination of interline flicker in field mode
Field switching and selection in field mode
Noise and cross-color reduction
Stills
9-image display, still-in-picture, picture-in-still with different frame versions
Zoom with selection of enlarged picture segment (8 x 12 positions)
Pin-programmable operation without standard conversion

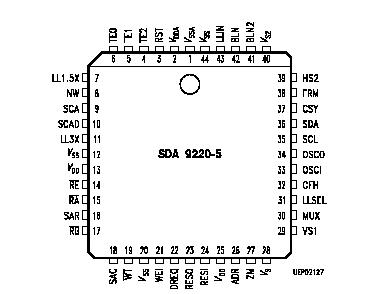

SDA9220-5
