SDA9253

212 X64 X16 X12-bit organization
Triple port architecture
One 16 X 12-bit input shift register
Two 16 X12-bit output shift registers
Shift registers independently and simultaneously accessible
Continuous data flow even at maximum speed
40-MHz shift rate 0.96-Gbit/s total data rate
All inputs and outputs TTL-compatible
Tristate outputs
Random access of groups of 16 X12 bits for a wide range of applications
Refresh-free operation possible
5 V ± 10 % power supply
0 . 70 °C operating temperature range
Low power dissipation: 700 mW active, 28 mW standby
Suitable for all common TV standards
Allows flicker and noise reduction simultaneously with only one field memory
Applications: TV, VCR, image processing, video printers, data compressors, delay lines, time base correctors,HDTV

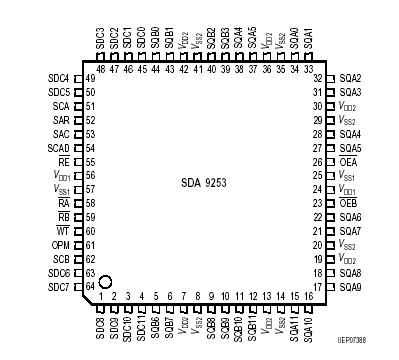

The SDA 9253 is a triple port 2605056 bit dynamic sequential-access memory for high-data-rate video applications. SDA 9253 is organized as 212 rows by 64 columns by 16 arrays by 12 bit to allow for the storage of 12-bit planes of a TV field (NTSC, PAL, SECAM, MAC) in standard or studio quality (13.5-MHz basic sample rate) or 12-bit planes of parts of a HDTV field. The memory is fabricated using the same CMOS technology used for 4-Mbit standard dynamic random access memories.

The extremely high maximum data rate of SDA 9253 is achieved by three internal shift registers, each of 16-bit length and 12-bit width, which perform a serial to parallel conversion between the asynchronous input/output data streams and the memory array. The parallel data transfer from the 16X12-bit input shift register C to an addressed location of the memory array and from the memory array to one of the 16 ´ 12-bit output shift registers A or B is controlled by the serial row-(SAR) and column address (SAC), SDA 9253 contains the desired column address and an instruction code (mode bits) for transfer and refresh.
