SDA9270

Features: • High performance line flicker reduction algorithm• Two input data formats (4:1:1 and 4:2:2)• I2C-Bus control• P-MQFP-80 package• 5 V supply voltageSupported MEGAVISION features• Multipicture (still in picture, picture in still, 9xpicture)• Stil...

product image

SDA9270 Picture
See larger image
SeekIC No. : 004486907 Detail

SDA9270: Features: • High performance line flicker reduction algorithm• Two input data formats (4:1:1 and 4:2:2)• I2C-Bus control• P-MQFP-80 package• 5 V supply voltageSupported...

SDA9270 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SDA9270
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High performance line flicker reduction algorithm
• Two input data formats (4:1:1 and 4:2:2)
• I2C-Bus control
• P-MQFP-80 package
• 5 V supply voltage
Supported MEGAVISION features
• Multipicture (still in picture, picture in still, 9xpicture)
• Still field
• Zoom
New MEGAVISION features
• Still frame
• Background still field
MEGAVISION features not supported
• 4:4:4
• Colored frame insertion (FRM)
• High performance line flicker reduction algorithm
• Two input data formats (4:1:1 and 4:2:2)

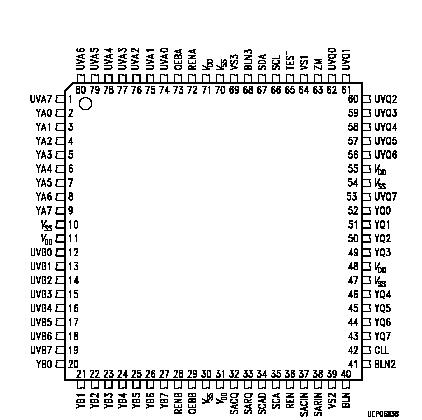

Pinout

Connection Diagram


Specifications

Parameter Symbol Limit Values Unit Remark
min. max.
Operating temperature TA 0 70 °C
Storage temperature Tstg - 65 125 °C
Junction temperature Tj   125 °C
Soldering temperature TS   260 °C
Soldering time tS   10 s
Input voltage VI - 0.3 V VDD + 0.3 V V VCC respectively
Output voltage VQ - 0.3 V VDD + 0.3 V V VCC respectively
Supply voltages VS - 0.3 6 V
Supply voltage
Differentials		 V - 0.25 0.25 V between any
internally nonconnected
supply pins
of the same kind, see
Pin Description
Total power dissipation Ptot   1 W
ESD protection ESD - 2 - 2 kV MIL STD 883C
method 3015.6,
100 pF, 1500
Latch-up protection   - 100 100 mA all inputs/outputs
