Part Number: SDA9362



MFG: SIEMENS

Package Cooled: 98+

D/C: QFC-44

Description: The SDA 9362 is a highly integrated deflection controller for CTV receivers with doubled line and stan...


Urgent Purchase

SDA9362 General Description


The SDA 9362 is a highly integrated deflection controller for CTV receivers with doubled line and standard or doubled field frequencies. It controls among others an horizontal driver circuit for a flyback line output stage, a DC coupled vertical sawtooth output stage and an East-West raster correction circuit. All adjustable output parameters are I2C Bus controlled. Inputs are HSYNC, VSYNC and the line locked clock CLL.

SDA9362 Maximum Ratings

Parameter Symbol Limit Values Unit Remark
min. max.
Operating temperature TA -20 70 °C
Storage temperature Tstg -40 125 °C
Junction temperature Tj   125 °C
Soldering temperature Ts   260 °C
Input voltage VI VSS - 0.3 V VDD + 0.3 V
Output voltage VQ VSS - 0.3 V VDD + 0.3 V
Supply voltages VDD - 0.3 6 V
Supply voltage
Differentials
  - 0.25 0.25 V 1)
Total power dissipation Ptot   0.85 W
Latch-Up Protection   -100 100 mA All inputs/outputs

SDA9362 Features

• Deflection - Protection - 16:9 / 4:3
• I2C Bus alignment of all deflection parameters
• All EW-, V- and H-functions (incl. 2)
• PW EHT compensation
• PH EHT compensation
• Compensation of H-phase deviation (e.g. caused by white bar)
• Upper/lower EW-corner correction separately adjustable
• V-angle correction: Vertical frequent linear modulation of H-phase
• V-bow correction: Vertical frequent parabolic modulation of H-phase
• Three reduced V-scan modes (75 %, 66 %, 50 % V-size) selectable
• H- and V-blanking time adjustable
• Partial overscan adjustable to hide the cut off control measuring lines in the reduced scan modes
• Stop/start of vertical deflection adjustable to fill out the 16/9 screen with different letterbox formats without    annoying overscan
• Dynamic PH EHT-compensation (white bar)
• Self adaptation of V-frequency/number of lines per field between 192 and 680 for each possible line frequency
• Protection against EHT run away (X-rays protection)
• Protection against missing V-deflection (CRT-protection)
• Two digital outputs for general purpose, controlled by I2C Bus
• Selectable softstart of the H-output stage
• P-MQFP-44-2 package
• 5 V supply voltage

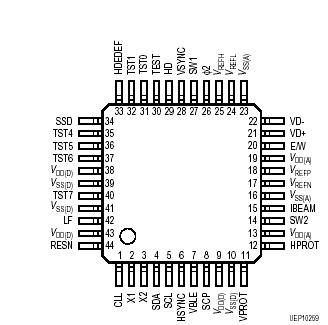

SDA9362 Connection Diagram

SDA9362  Connection Diagram

SDA9362 datasheet

SDA9362
PDF/DataSheet Download

  • Datasheet: SDA9362
  • File Size: 204713 KB
  • Manufacturer: SIEMENS [Siemens Semiconductor Group]
  • Click here to Download
