General Description
SDA 5648 General Description
The CMOS circuit SDA 5648 is intended for use in video cassette recorders to retrieve control data of the PDC system from the data lines broadcast during the vertical blanking interval of a standard video signal.
The SDA 5648 is devised to handle PDC data transported either in Broadcast Data Service Packet (BDSP) 8/30 format 2 (bytes no. 13 through 25) of CCIR teletext system B or in the dedicated data line no. 16 in the case of VPS. Furthermore it is able to receive the Unified Date and Time (UDT) information transmitted in bytes no. 15 through 21 of packet 8/30 format 1.
SDA 5648 Maximum Ratings
| Parameter |
Symbol |
Limit Values |
Unit
|
TestCondition | ||
|
min. |
typ. |
max. | ||||
| Ambient temperature | TA | 70 | °C | in operation | ||
| Storage temperature | Tstg | 40 | 125 | °C | by storage | |
| Total power dissipation | Ptot | 300 | mW | |||
| Power dissipation per output | PDQ | 10 | mW | |||
| Input voltage | VIM | 0.3 | 6 | V | ||
| Supply voltage | VDD | 0.3 | 6 | V | ||
| Thermal resistance | RthSU | 80 | K/W | |||
| Supply voltage | VDD | 4.5 | 5 | 5.5 | V | |
| Supply current | IDD | 5 | 15 | mA | ||
| Ambient temperature range | TA | 0 | 70 | °C | ||
SDA 5648 Features
` Single-chip receiver for PDC data, broadcast either
in Broadcast Data Service Packet (BDSP) 8/30/2 according to CCIR teletext system B, or
in dedicated line no. 16 of the vertical blanking interval (VPS)
` Reception of Unified Date and Time (UDT) broadcast in BDSP 8/30/1
` Low external components count
` On-chip data and sync slicer
` I2C-Bus interface for communication with external microcontroller
` Selection of PDC/VPS operating mode software controlled by I2C-Bus register
` Pin and software compatible to VPS Decoder SDA 5642
` Supply voltage: 5 V ± 10 %
` Video input signal level: 0.7 Vpp to 1.4 Vpp
` Technology: CMOS
` Package: P-DIP-14-3 and P-DSO-20-1
` Operating temperature range: 0 to 70 °C
in Broadcast Data Service Packet (BDSP) 8/30/2 according to CCIR teletext system B, or
in dedicated line no. 16 of the vertical blanking interval (VPS)
` Reception of Unified Date and Time (UDT) broadcast in BDSP 8/30/1
` Low external components count
` On-chip data and sync slicer
` I2C-Bus interface for communication with external microcontroller
` Selection of PDC/VPS operating mode software controlled by I2C-Bus register
` Pin and software compatible to VPS Decoder SDA 5642
` Supply voltage: 5 V ± 10 %
` Video input signal level: 0.7 Vpp to 1.4 Vpp
` Technology: CMOS
` Package: P-DIP-14-3 and P-DSO-20-1
` Operating temperature range: 0 to 70 °C

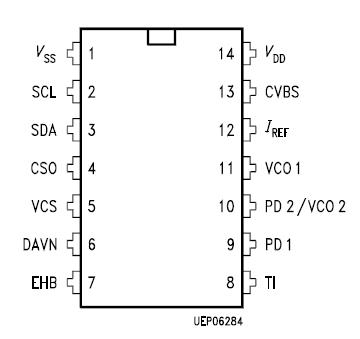

SDA 5648 Connection Diagram
