SDA 6310X

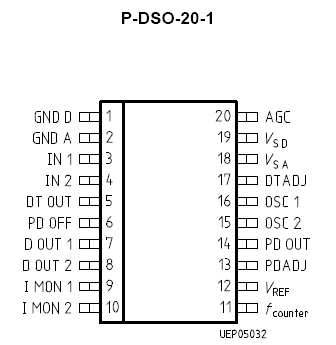

The features of SDA6310X are as follows: (1)internal reference voltage source; (2)automatic gain control (AGC) with integrated AGC amplifier.; (3)output for adjustable delayed tuner AGC; (4)oscillator circuitry for VCO with external varicaps; (5)symmetrical demodulator output for inphase arm; (6)Open collector counter output for measurement of oscillator frequency; (7)phase detector circuitry with offset adjust and turn off facility, including arm filters to suppress high frequency terms; (8)data separator for inphase and quadrature arm, output voltage levels TTL input compatible.

What comes next is about the maximum ratings of SDA6310X: (1)analog GND: 0.1V min and 0.1 V max; (2)QPSK input 1: 0V min and 6 V max; (3)QPSK input 2: 0V min and 6 V max; (4)delayed tuner AGC output: 0V min and 13.2 V max; (5)phase detector off input: 0V min and 13.2 V max; (6)data output 1: -5mA min and 5mA max; (7)data output 2: -5mA min and 5mA max; (8)inphase monitor output 1: -5mA min and 0.5mA max; (9)inphase monitor output 2: -5mA min and 0.5mA max; (10)counter frequency output: 0mA min and 5mA max; (11)counter frequency output: 0mA min and 13.2mA max; (12)reference voltage source: -5mA min and 1mA max; (13)oscillator pin 2: 0V min and 5 V max; (14)oscillator pin 1: 0V min and 5 V max; (15)analog supply voltaget: 0V min and 13.2 V max; (16)digital supply voltaget: 0V min and 13.2 V max; (17)junction temperature: 40°C min and 150 °C max; (18)storage temperature: 40°C min and 125 °C max; (19)thermal resistance: 90 K/W; (20)ESD-Voltage, HBM: 4kV min and 4kV max.

The following is about the electrical characteristics of SDA6310X: (1)total supply current: 50 mA typical and 65 mA max at I18 + I19; (2)digital supply current: 18mA typical and 25 mA max; (3)analog supply current: 32mA typical and 45 mA max; (4)reference voltage: 6V typical, 5.5V min and 6.5V max; (5)line regulation: 30mV typical, 0mV min and 60mV max at V18, 19 = 10.8 13.2 V; (6)load regulation: 20mV typical, 0mV min and 60mV max at IR = - 5 to 1 mA; (7)temperature reg.: 0mV typical, -60mV min and 60mV max at TA = 0 °C to 70 °C. There is not much information about the SDA6310X, if you want to get more information, please pay attention to our website and we will update it in time.
