Part Number: SDA 9064-5
Description: The DDC consists essentially of a processor with program ROM and RAM, ports for input and output signals and a clock ra...
- Table of contents:
SDA 9064-5
-
Suppliers
DataSheet
General Description
SDA 9064-5 General Description
The DDC consists essentially of a processor with program ROM and RAM, ports for input and output signals and a clock rate divider that supplies the whole chip with clock signals.
The processor is specially manufactured for the arithmetic operations performed in the DDC. It operates according to the pipeline principle on account of the high requirements involved with regard to time. It has two 16-bit accumulators. The 16-bit data bus and the 7-bit address bus take care of the data traffic between the processor and the ports. The size of the static RAM is 96 x 16 bits; the program ROM can store 800 16-bit instructions.
The V port and the 2 port comprise counters for coarse conversion and a chain of 32 resistors for amplitute quantization of fine conversion. The 2 port further measures the position of the ZR pulses with respect to time and transfers measured data to the processor. The east/west port similarly has a counter for digital time conversion but manages without fine conversion.
The 9-bit analog-to-digital converter works on the principle of successive approximation using a capacitance field.
The I2C Bus interface makes it possible to read and modify deflection data in the RAM. The protective circuitry monitors inputs SS, ZR and HA2EN using comparators.
The start-up circuitry has its own power and clock pulse supply. It is therefore completely independent of the other DDC functions.
SDA 9064-5 Maximum Ratings
| Parameter | Symbol | Limit Values | Unit | |
| min. | max. | |||
| Input voltage | VIM | 0.5 | 6.0 | V |
| Supply voltage | VDD | 0.3 | 6.0 | V |
| Substrate voltage | VSUB | 3.2 | 0 | V |
| Total power dissipation | Ptot | 1.7 | W | |
| Ambient temperature range | TA | 0 | 70 | °C |
| Storage temperature range | Tstg | 55 | 125 | °C |
| Thermal resistance system-air |
Rth SA | 36 | K/W | |
SDA 9064-5 Features
· Pipeline processor structure controls deflection stages
· Raster alignment by keyboard or automatically
· Adaptable beam current compensation for picture height and width
· Protection input stops the exceeding
· For double the line frequency and 100-/120-Hz vertical frequency interlaced

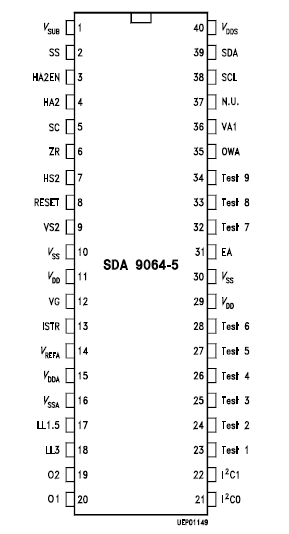

SDA 9064-5 Connection Diagram
