SG2525AP

Output Current :
Output Power :
Mounting Style : SMD/SMT
Packaging : Tube
Package / Case : SO-16
Switching Frequency : 500 KHz
Operating Temperature Range : - 25 C to + 85 C
Output Voltage : 5.15 V
Input Voltage : 8 V to 35 V


Features:

.8 TO 35 V OPERATION
.5.1 V REFERENCE TRIMMED TO ± 1%
.100 Hz TO 500 KHz OSCILLATORRANGE
.SEPARATEOSCILLATORSYNC TERMINAL
.ADJUSTABLE DEADTIMECONTROL
.INTERNALSOFT-START
.PULSE-BY-PULSESHUTDOWN
.INPUT UNDERVOLTAGE LOCKOUT WITH HYSTERESIS
.LATCHING PWM TO PREVENT MULTIPLEPULSES
.DUAL SOURCE/SINK OUTPUT DRIVERS

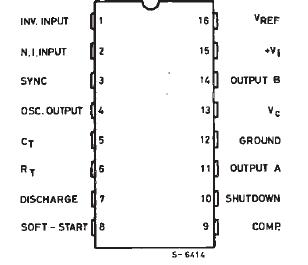

Pinout




Specifications

Parameter	Unit	Value	Unit
Collector Output Current	.C	40	V
Supply Voltage	Vi	40	V
Oscillator Charging Current	.C	5	V
Reference Output Current	.C	500	mA
Current through CT Terminal Logic Inputs Analog Inputs	IT	5 0.3 to+5.5 0.3 to Vi	mA V V
Total Power Dissipation at Tamb = 70°C	dB	5	mA
		1000	mw
Storage Temperature Range	?	65 to 150	°C
Operating Ambient Temperature Range: SG2524 SG3524	dB	25 to 85 0 to 70	°C

Description

The SG2525AP series of pulse width modulator integrated circuits are designed to offer improved performance and lowered external parts count when used in designing all types of switching power supplies. The on-chip + 5.1 V reference is trimmed to ± 1 %andthe inputcommon-mode rangeof the error amplifier includes the reference voltage eliminating external resistors. A sync input to the oscillator allows multiple units to beslaved or a single unit to be synchronizedto an external systemclock. A single resistorbetweentheCT andthe dischargeterminals provide a wide range of dead time ad- justment. Thesedevicesalso featurebuilt-insoft-startcircuitry with only an external timing capacitor required. A shutdownterminal controls both the soft-start circuity and the output stages, providing instantaneous turn off through the PWM latch with pulsed shutdown, as well as soft-start recycle with longer shutdowncommands. These functions of SG2525AP are also controlledby an undervoltagelockoutwhich keepsthe outputs off and the soft-start capacitor discharged for sub-normal input voltages.This lockout circuitry includes approximately 500mV of hysteresis for jitterfree operation. Another feature of thesePWM circuits is a latch following the comparator. Once a PWM pulses has been terminated for any reason, the outputs will remain off for the durationof the period. The latch is reset with each clock pulse. The output stages are totem-pole designs capable of sourcing or sinking in excess of 200 mA. The SG2525AP outputs tage features NOR logic, givinga LOWoutput for an OFF state.

Parameters:

Technical/Catalog Information	SG2525AP
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
PWM Type	Voltage Mode
Number of Outputs	2
Package / Case	16-SOIC (3.9mm Width)
Packaging	Tube
Duty Cycle	49%
Voltage - Supply	8 V ~ 40 V
Frequency-Max	500kHz
Buck	No
Boost	No
Flyback	No
Inverting	No
Doubler	No
Divider	No
Cuk	No
Isolated	No
Drawing Number	*
Operating Temperature	-55°C ~ 150°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SG2525AP SG2525AP 497 6726 5 ND 49767265ND 497-6726-5
