SL811HS

Core Size: -
Speed: -
Connectivity: -
Peripherals: -
Program Memory Size: -
EEPROM Size: -
Mounting Type: Surface Mount
Voltage - Supply (Vcc/Vdd): -
Data Converters: -
Oscillator Type: -
Voltage - Supply: 3 V ~ 3.6 V
Packaging: Tube
Series: -
Manufacturer: Cypress Semiconductor Corp
RAM Size: 256 x 8
Interface: USB
Applications: USB Host/Slave Controller
Core Processor: -
Program Memory Type: -
Controller Series: USB-Hosts
Number of I /O: 8
Operating Temperature: 0°C ~ 65°C
Package / Case: 28-LCC (J-Lead)
Supplier Device Package: 28-PLCC (11.51x11.51)


Features:

• The only USB Host/Slave controller for embedded systems in the market with a standard microprocessor bus interface.
• Supports both full-speed (12 Mbps) and low-speed (1.5 Mbps) USB transfer

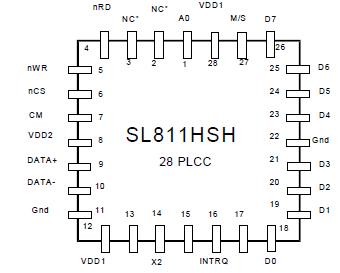

Pinout




Specifications

Storage Temperature ............. 40°C to 125°C
Voltage on any pin with respect to ground.. 0.3V to 6.0V
Power Supply Voltage (V_DD)................ 4.0 V
Power Supply Voltage (V_DD1) ...............4.0 V
Lead Temperature (10 seconds) ............ 180°C


Description

The SL811HS package is a 28-pin PLCC. The device requires 3.3 VDC. Average typical current consumption is less then 20 mA for 3.3V.
