Product Details

Description



Features:

`  8/16-bit microcomputer in 0.22 µm CMOS technology
`  Instruction set opcode compatible with standard  SAB 8051 processor
`  Downward compatibility to existing SLE 66CxxxP products for
     existing masks without using the new features
`  Addressable memory up to 16 Mbyte
`  Additional enhanced instructions for direct physical memory access of >64kByte
     `  Typically saves up to 90 % code space and increases execution speed up to 80 %
`  Dedicated, non-standard architecture with execution time 6 times faster than standard SAB 8051 processor
     at same external clock. (Up to 18 times faster using internal frequency PLL x 3 compared to external clock).
`  96 Kbytes User ROM for application programs
`  16 Kbytes MicroSlim-EEPROM for increased memory requirements in mobile applications
`  4 Kbytes XRAM, 256 bytes internal RAM, 700 bytes Crypto RAM.
`  Enhanced Memory Management and Protection Unit (MMU) with application and user defined segments
`  Dual Key Triple DES (DDES)
`  Advanced Crypto Engine:
     `  Up to 1100 bit RSA calculation in Hardware
     `  Up to 2048 bit RSA calculation in software with RSA 2048 crypto  library
          (CC EAL 5+ certified within SLE66CX322P, refer to product brief)
     `  Supports Elliptic Curves over GF[p]
`  CC EAL5+ certification according to BSI-PP-0002 planned
`  True Random Number Generator with Firmware test function
`  CRC Module 16-bit Interrupt Module
`  Code executions during E²-programming for faster personalization
`  EEPROM programming voltage generated on chip
`  Internal Clock with up to 33 MHz:
     Programmable internal frequency (PLL x1, x2, x3, x4 and free running mode(s)).
`  Adjustable internal frequency according to available power or required performance
     `  Increased internal clock frequency for maximum performance
     `  Internal frequency ist automatically adjusted to guarantee a given limited power consumption
`  Two 16-bit Autoreload Timer
`  Power saving sleep mode
`  Ext. Clock freq. 1 up to 7.5 MHz for int. Clock up to 33 MHz
`  UART for handling serial interface in accordance with ISO/IEC 7816 part 3
     supporting transmission protocols T=1 and T=0
`  Supply voltage range:1.8 V, 3.0 V, 5.0 V
`  Support of current current consumption limits by GSM / UICC applications
      < 10 mA @  5.5 V
      <   6 mA @  3.3 V
      <   4 mA @  1.98 V
`  Operating Temperature range: -25 to +85°C
`  Storing temperature range: 40° to +125°C
`  ESD protection larger than 6 kV (HBM)


Pinout

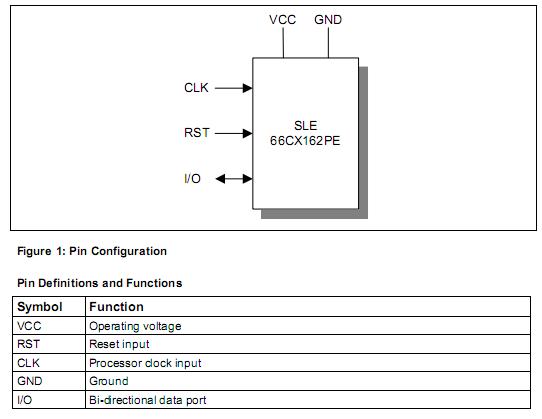

Connection Diagram


Description

The SLE66CX162PE is a member of the improved 66PE-series of Infineon Technologies. This high performance security crypto controller is manufactured in advanced 0.22 µm CMOS technology. It is downward compatible to existing 66P controller derivatives. The well known ECO2000 8/16 bit CPU provides the high efficiency of the SAB 8051 instruction set extended by additional powerful instructions together with enhanced performance, memory sizes and security features compared to existing 66P derivatives.
