Product Details

Description



Features:

` 8-bit microcomputer in CMOS technology
` Instruction set opcode compatible with standard SAB8051 processor
` Software compatible with SLE 44C40
` Dedicated, non-standard architecture with execution time less than half of standard SAB 8051 processor
` 15-Kbyte User ROM for application programs
` 2-Kbyte manufacturer ROM for Chip Management System (CMS)
` 4-Kbyte EEPROM as program/data memory
` 256-byte RAM
` Power saving sleep mode
` Clock freq. = int. freq.: 1 to 5 MHz1) at 5 V ± 10 %, 1 to 4 MHz at 3 V ± 10 %
` Contact configuration and serial interface in accordance with ISO7816
` Supply voltage range: 2.7 V to 5.5 V
` < 10 mA supply current at 5 MHz
` Temperature range: 25 to + 70 °C 2)
` ESD protection larger than 4 kV


Pinout

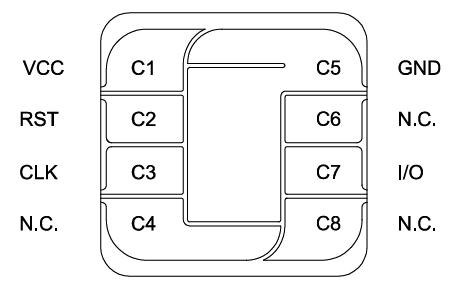

Connection Diagram
