SM5212D

Features: · CMOS Technology· Low Power Consumption· Very High Noise Immunity· Up to 12 2-State Code Address Pins· Wide Range of Operating Voltage: Vcc = 3 ~ 12 Volts· Single Resistor Oscillator· Available in DIP and SOP PackageApplication· Car Security· Garage Door· Home Security/Automation System...

product image

SM5212D Picture
See larger image
SeekIC No. : 004493830 Detail

SM5212D: Features: · CMOS Technology· Low Power Consumption· Very High Noise Immunity· Up to 12 2-State Code Address Pins· Wide Range of Operating Voltage: Vcc = 3 ~ 12 Volts· Single Resistor Oscillator· Ava...

SM5212D Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SM5212D
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· CMOS Technology
· Low Power Consumption
· Very High Noise Immunity
· Up to 12 2-State Code Address Pins
· Wide Range of Operating Voltage: Vcc = 3 ~ 12 Volts
· Single Resistor Oscillator
· Available in DIP and SOP Package




Application

· Car Security
· Garage Door
· Home Security/Automation System
· Toys
· Remote Control for Industrial Use
· Page 1




Pinout

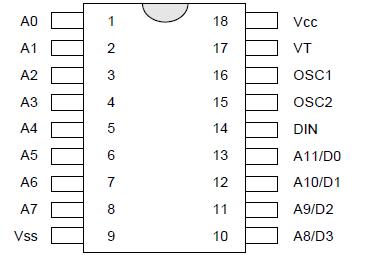

Connection Diagram




Specifications

Parameter Symbol conditions
Ratings
Unit
Supply Voltage VI-VSS
-0.3~13
V
Input Voltage Vss - VDD
VSS-0.3~VDD+0.3
V
Operating Temperature Topr
-20~75
Storage Temperature Tstg VDD - Vss = 12V
-50~125





Description

SM5212D is a remote control decoder paired with SM5212E utilizing CMOS Technology. It has 12-bit 2-state address pins providing a 2 12 address codes; thereby, drastically reducing any code collision and unauthorized code scanning possibilities. SM5212D is available in several options to suit every application needs : variable number of data output pins, latch or momentary output type.
