Features:

·  Conforms to TR-NWT-000030 and SR-TSV- 002476 (Bellcore) standards
·  Call waiting
·  FSK demodulator
·  Ring signal detect circuit built-in
·  High input sensitivity
·  Input gain adjust circuit built-in
·  Power-down mode
·  Crystal oscillator circuit built-in
·  Single supply operation
·  Microcontroller I/O interface
·  Molybdenum-gate CMOS process
·  24-pin SOP and 24-pin DIP packages
·  SM8222A : 2.7 to 3.3V operation
·  SM8222B : 4.5 to 5.5V operation


Application

·  Telephones that display dialer number before and during conversation
·  Adapters to display dialer number before and during conversation


Pinout

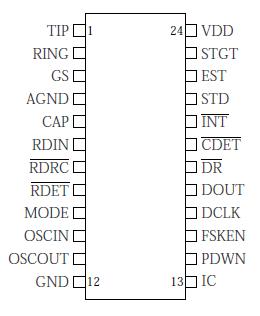

Connection Diagram


Specifications

Parameter
Symbol
 Condition
Rating
Unit
Supply voltage range
VDD
 SM8222A
-0.5 to 5.0
V
SM8222B
-0.5 to 7.0
V
Input voltage range
VIN

− 0.3 to VDD + 0.3
V
Input current
IIN

40
mA
Power dissipation
PD

44
mW
Storage temperature range
Tstg

-40to 125



Description

The SM8222A/SM8222B is a calling number identification (caller ID) and call waiting signal (dual tone signal) receiver decoder IC that conforms with the TRNWT- 000030 and SR-TSV-002476 (Bellcore) dialer telephone number display standards. It is implemented in CMOS and incorporates a power-down function for low power operation.
